Circuit Diagram

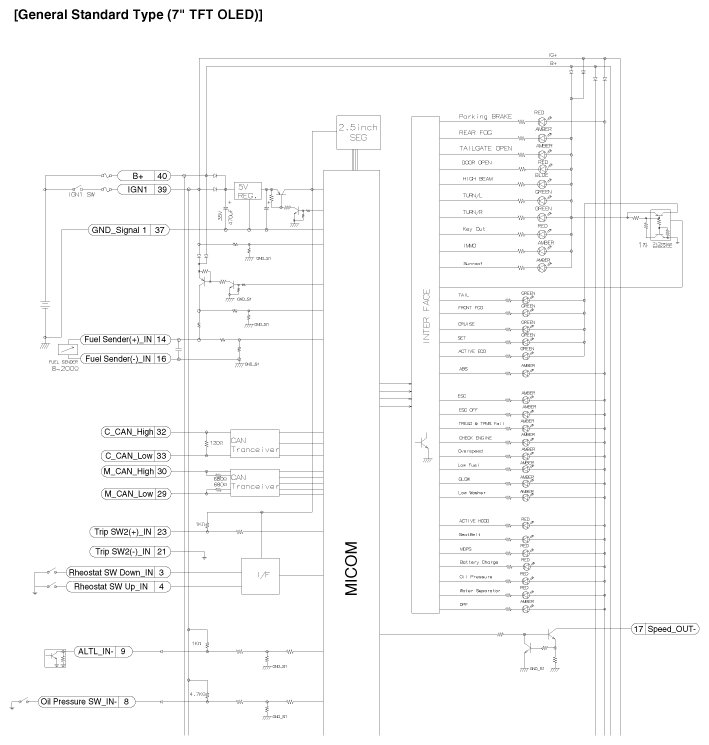

Fig 1: Instrument Cluster Circuit Diagram - General Standard Type (7Inch TFT OLED; 1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

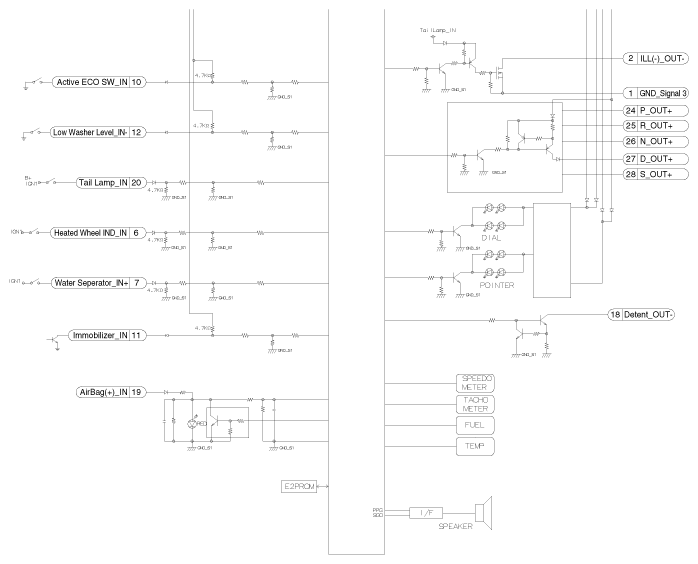

Fig 2: Instrument Cluster Circuit Diagram - General Standard Type (7Inch TFT OLED; 2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

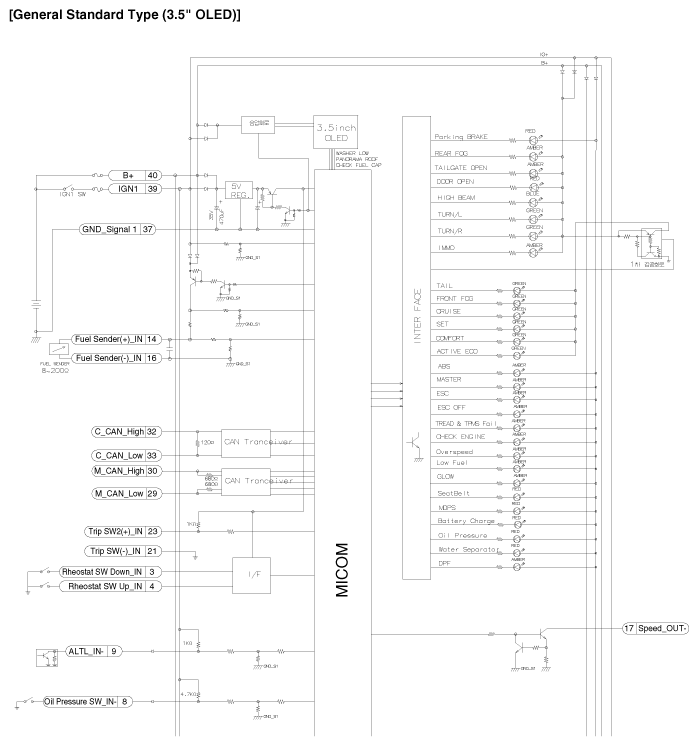

Fig 3: Instrument Cluster Components Location - General Standard Type (3.5Inch OLED; 1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

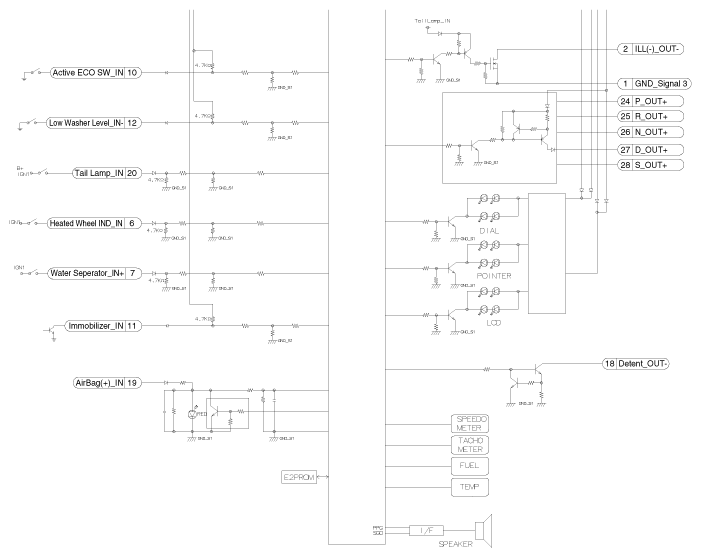

Fig 4: Instrument Cluster Components Location - General Standard Type (3.5Inch OLED; 2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

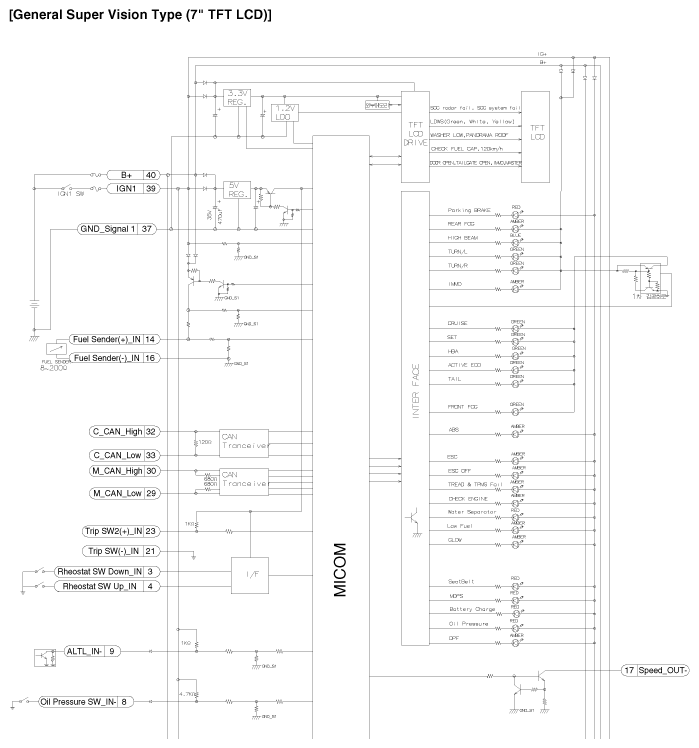

Fig 5: Instrument Cluster Circuit Diagram - General Super Vision Type (7Inch TFT LCD; 1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

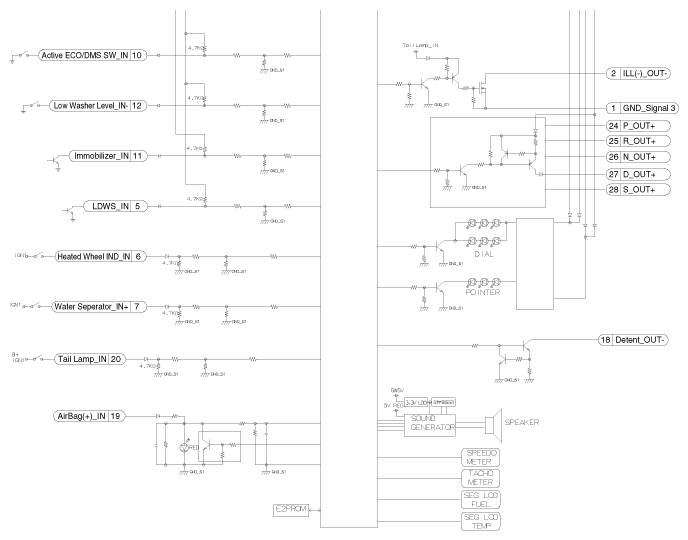

Fig 6: Instrument Cluster Circuit Diagram - General Super Vision Type (7Inch TFT LCD; 2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
