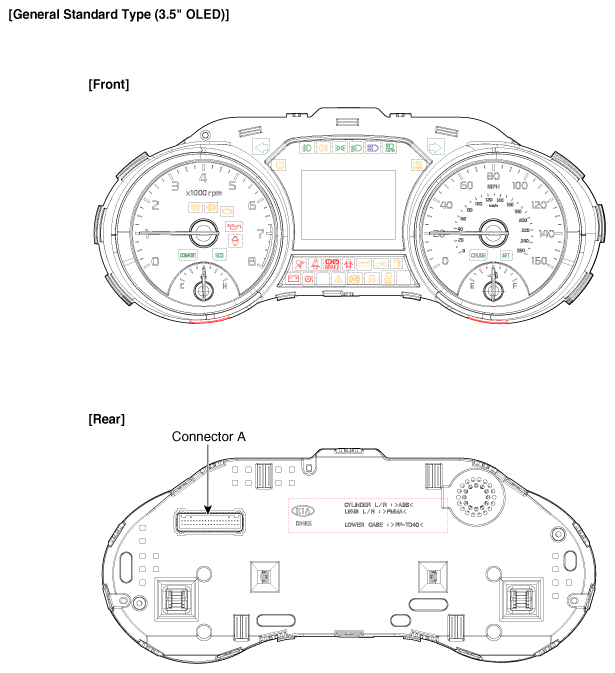

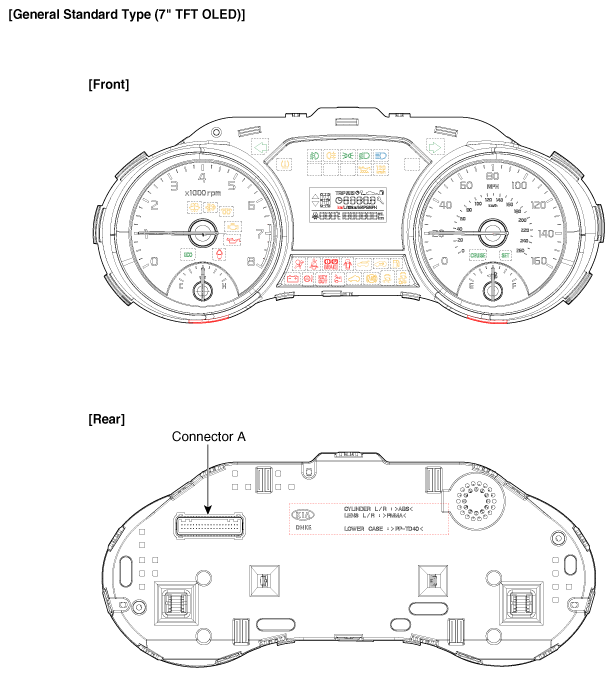

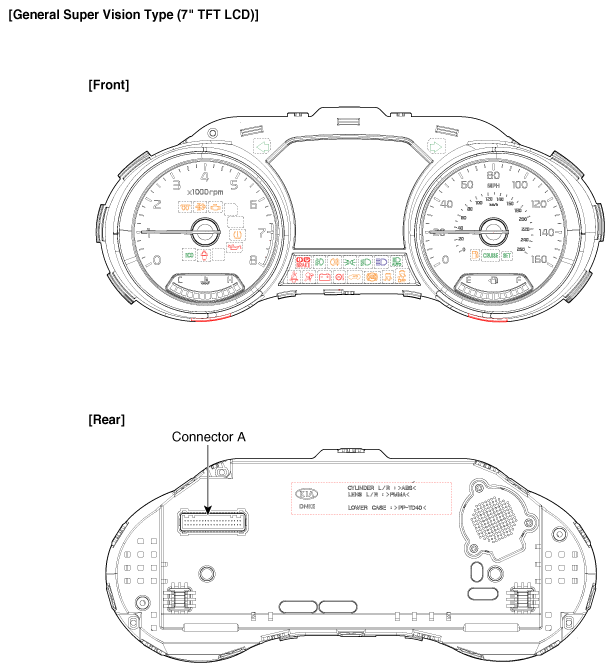

Components And Components Location: Components
Connector Pin Information
CONNECTOR PIN INFORMATION DESCRIPTION
| No. | Description |
|---|---|
| 1 | Ground signal3 |
| 2 | Illumination output (-) |
| 3 | Rheostat switch (Down)_Input |
| 4 | Rheostat switch (Up)_Input |
| 5 | LDWS_Input |
| 6 | Steering wheel heated indicator_Input |
| 7 | Water seperator_Input (+) |
| 8 | Oil pressure switch_Input (-) |
| 9 | ALTL Input (-) |
| 10 | Active ECO/DMS switch_Input |
| 11 | Immobilizer_Input |
| 12 | Low washer level_Input (-) |
| 13 | - |
| 14 | Fuel sender_Input (+) |
| 15 | - |
| 16 | Fuel sender_Input (-) |
| 17 | Speed_Output (-) |
| 18 | Detent_Output (-) |
| 19 | Airbag_Input (+) |
| 20 | Tail lamp_Input |
| 21 | Trip switch1_Input (-) |
| 22 | - |
| 23 | Trip switch2_Input (-) |
| 24 | AT ('P' Position) (+) |
| 25 | AT ('R' Position) (+) |
| 26 | AT ('N' Position) (+) |
| 27 | AT ('D' Position) (+) |
| 28 | AT ('S' Position) (+) |
| 29 | Multimedia-CAN (Low) |
| 30 | Multimedia-CAN (High) |
| 31 | - |
| 32 | Chassis-CAN (High) |
| 33 | Chassis-CAN (Low) |
| 34 | - |
| 35 | - |
| 36 | - |
| 37 | Ground signal1 |
| 38 | - |
| 39 | IGN1 |
| 40 | Battery (+) |
