Repair Procedures: Replacement

1. Remove the cowl top cover.

   (Refer to "COWL TOP COVER ")

2. Remove the both front seats.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

3. Remove the main crash pad assembly.

   (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

4. Disconnect the steering column connectors.

   (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

5. Down the steering column after loosening the mounting bolts.

   (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

6. Disconnect the passenger compartment junction box connectors (A).
   Fig 1: Locating Passenger Compartment Junction Box Connectors

   Courtesy of KIA MOTORS AMERICA, INC.
7. Disconnect the multi box connectors (A).

   [Driver's]

   Fig 2: Locating Driver Multi Box Connectors

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Locating Passenger Multi Box Connectors

   Courtesy of KIA MOTORS AMERICA, INC.
8. Disconnect the airbag control module (SRSCM) connector (A).
   Fig 4: Locating Airbag Control Module (SRSCM) Connector

   Courtesy of KIA MOTORS AMERICA, INC.
9. Disconnect the wiring mounted fastener.
   Fig 5: Locating Wiring Mounted Fastener

   Courtesy of KIA MOTORS AMERICA, INC.
10. Disconnect the connector (A) and the mounting clips (B) in the front pillar.

    [Driver's]

    Fig 6: Locating Connector & Mounting Clips In Front Pillar (Driver)

    Courtesy of KIA MOTORS AMERICA, INC.
    Fig 7: Locating Connector & Mounting Clips In Front Pillar (Passenger)

    Courtesy of KIA MOTORS AMERICA, INC.
11. Disconnect the smart key antenna connector (A).
    Fig 8: Locating Smart Key Antenna Connector

    Courtesy of KIA MOTORS AMERICA, INC.
12. Loosen the nut and remove the antenna (A).
    Fig 9: Locating Antenna With Nut

    Courtesy of KIA MOTORS AMERICA, INC.
13. Loosen the screw and remove the air duct (A).
    Fig 10: Locating Air Duct With Screw

    Courtesy of KIA MOTORS AMERICA, INC.
14. Disconnect the heater and blower unit connector.
    1. Disconnect the cluster Ionizer (A), FET (B), evaporator temperature sensor (C), and mode adjust actuator (D).
       Fig 11: Locating Cluster Ionizer, FET, Evaporator Temperature Sensor & Mode Adjust Actuator

       Courtesy of KIA MOTORS AMERICA, INC.
    2. Disconnect the auto defogging actuator connector (A), intake actuator connector (B), and the wiring mounted fastener.
       Fig 12: Locating Auto Defogging Actuator Connector, Intake Actuator Connector & Wiring Mounted Fastener

       Courtesy of KIA MOTORS AMERICA, INC.
    3. Disconnect the photo sensor wiring fastener (A).
       Fig 13: Locating Photo Sensor Wiring Fastener

       Courtesy of KIA MOTORS AMERICA, INC.
    4. Disconnect the mode control actuator (A), temperature control actuator (B) and then remove the wiring fastener.
       Fig 14: Locating Mode Control Actuator, Temperature Control Actuator (1 Of 2)

       Courtesy of KIA MOTORS AMERICA, INC.
    Fig 15: Locating Wiring Fastener

    Courtesy of KIA MOTORS AMERICA, INC.
15. Loosen the bolt and separate the smart key unit (A).
    Fig 16: Locating Smart Key Unit With Bolt

    Courtesy of KIA MOTORS AMERICA, INC.
16. After loosening the mounting bolts and nuts, remove the cowl cross bar assembly (A).

    [LH]

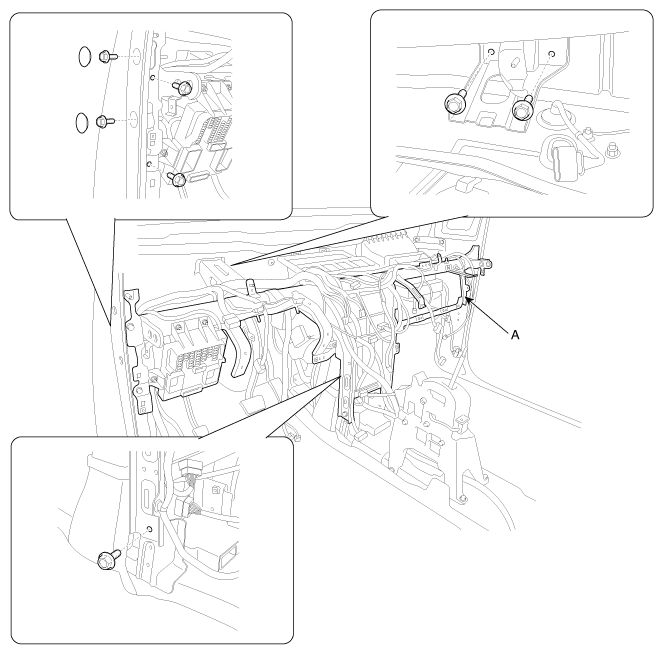

    Fig 17: Locating Cowl Cross Bar Assembly (LH)

    Courtesy of KIA MOTORS AMERICA, INC.

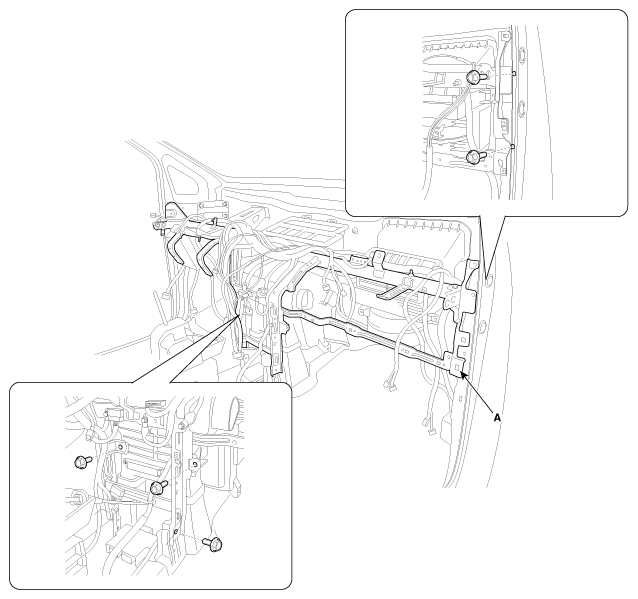

    Fig 18: Locating Cowl Cross Bar Assembly (RH)

    Courtesy of KIA MOTORS AMERICA, INC.
17. Loosen the nuts and remove the cowl cross bar assembly (B) from air conditioning unit (A).

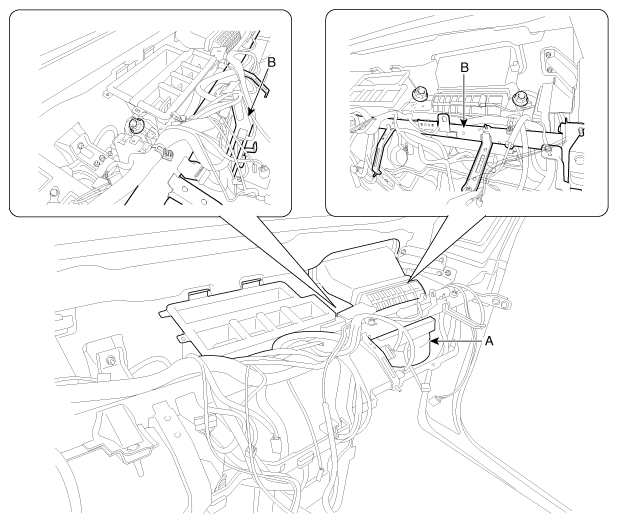

    Fig 19: Remove Cowl Cross Bar Assembly From Air Conditioning Unit

    Courtesy of KIA MOTORS AMERICA, INC.
18. Install in the reverse order of removal.

Information

• Make sure that the crash pad fits onto the guide pins correctly.
• Before tightening the bolts, make sure that the crash pad wire harnesses are not pinched.
• Make sure that the connectors are plugged in properly, and the antenna lead is connected properly.
• Enter the anti-theft code for the radio, and then enter the customer's radio station presets.
