Circuit Diagram

[Standard]

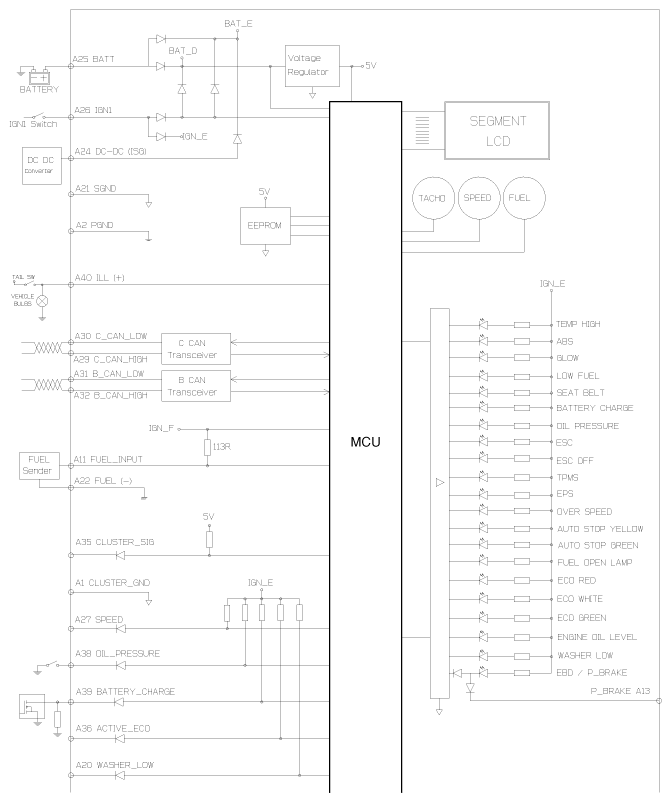

Fig 1: Instrument Cluster Circuit - Standard (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

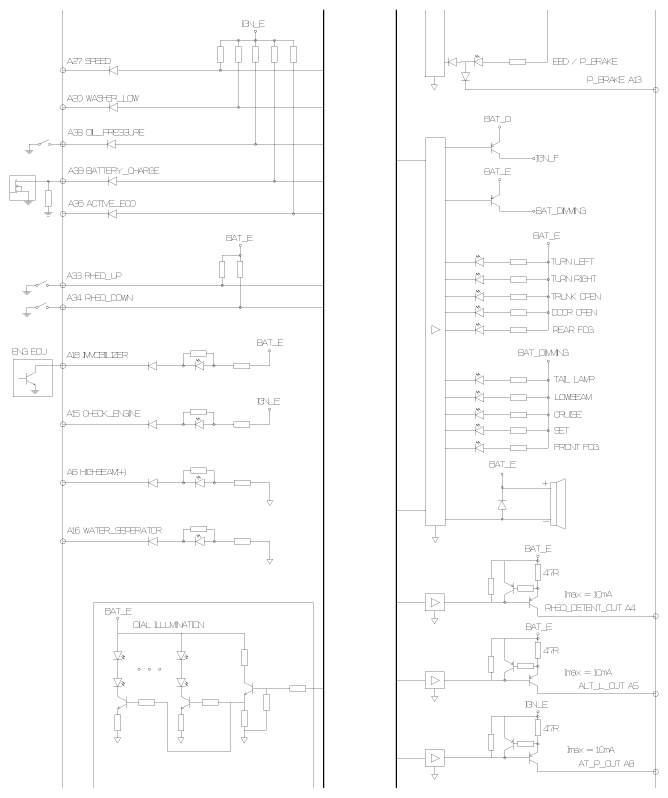

Fig 2: Instrument Cluster Circuit - Standard (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Instrument Cluster Circuit - Standard (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

[Supervision]

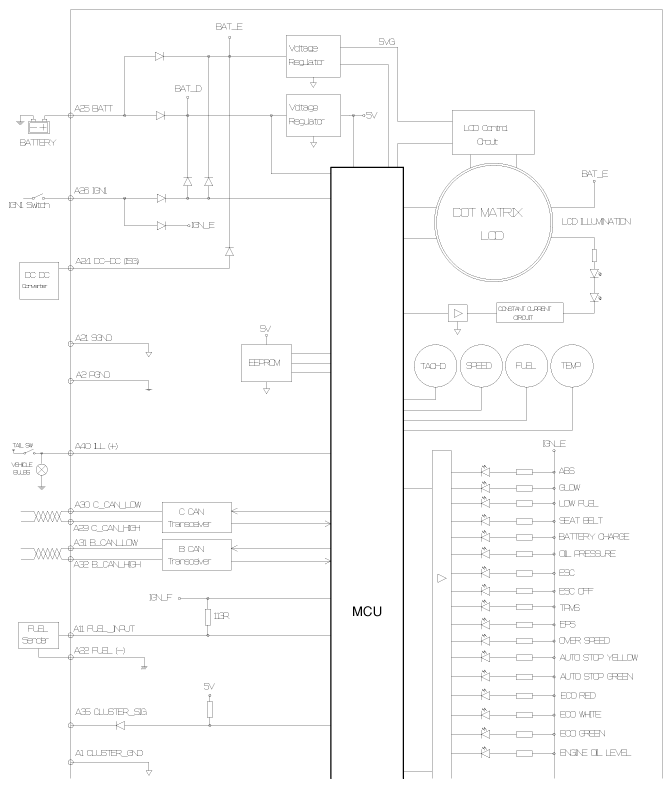

Fig 4: Instrument Cluster Circuit - Supervision (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

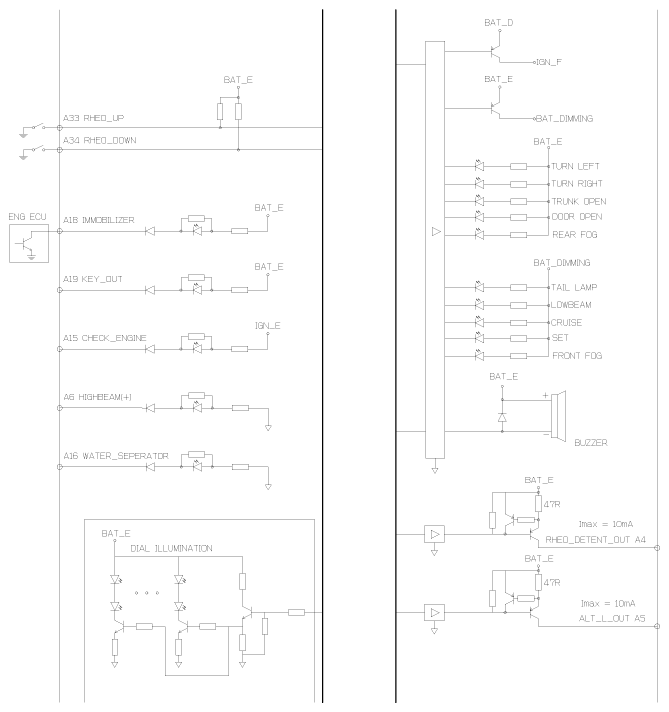

Fig 5: Instrument Cluster Circuit - Supervision (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Instrument Cluster Circuit - Supervision (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
