Home >> Kia >> 2017 >> Optima SX >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Intake And Exhaust System - 2.0L (Except HEV) >> Muffler And Catalytic Converter >> Components and Components Location >> Components

Components and Components Location: Components

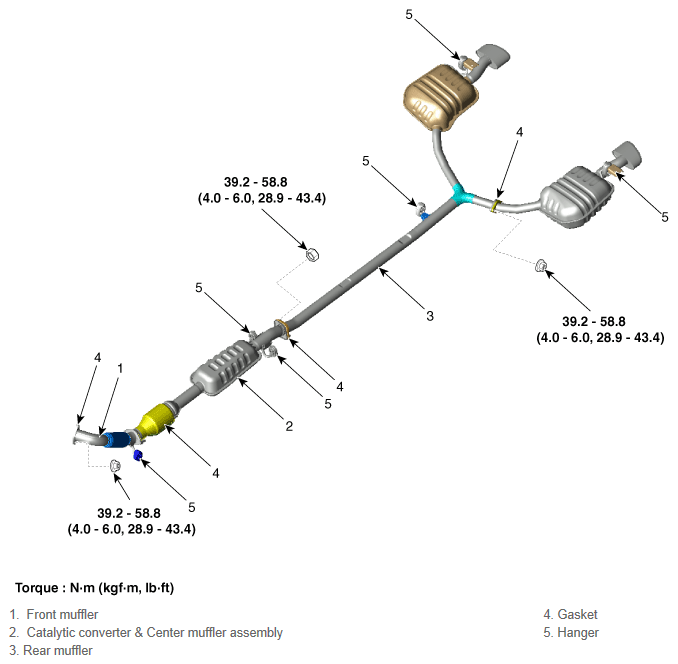

Fig 1: Muffler And Catalytic Converter Components With Torque Specification

G12145377

Courtesy of KIA MOTORS AMERICA, INC.
