Air Cleaner Element

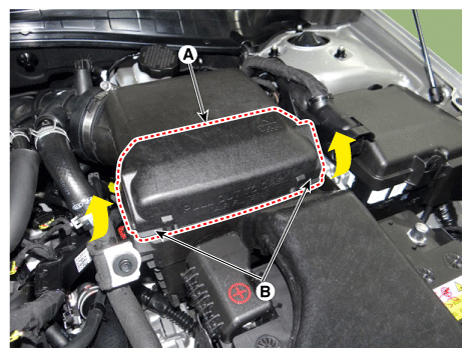

  1. Open the air cleaner element cover (A) by lifting down the air cleaner element cover handle (B).
    Fig 1: Opening Air Cleaner Element Cover
    G12145330Courtesy of KIA MOTORS AMERICA, INC.

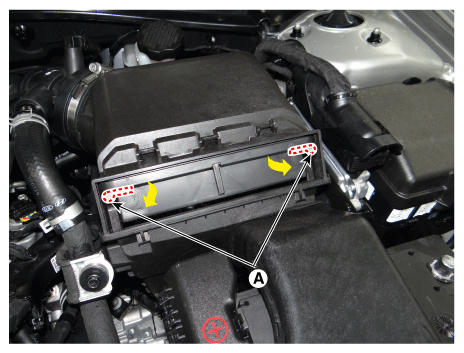

  2. Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.
    Fig 2: Turning Air Cleaner Element Camshaft
    G12145331Courtesy of KIA MOTORS AMERICA, INC.

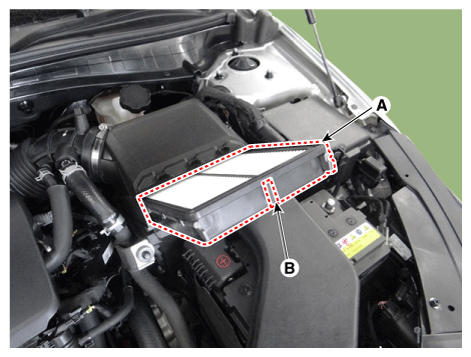

  3. Replace the air cleaner element (A) with a new one.
    Fig 3: Replacing Air Cleaner Element
    G12145332Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Grab the handle (B) then pull out the air cleaner element.

  4. Close the service cover by hooking the clamp.
