Monitor KDS/GDS Data

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON".
  3. Monitor "Diagnostic Trouble Codes (DTC)"  with KDS/GDS.
    Fig 1: Monitoring Diagnostic Trouble Codes (DTC) With KDS/GDS
    G12137381Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    NO

    • Fault is intermittent caused by poor contact in the EPB ECU's connector or was repaired and EPB ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.


  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Engine "ON"
  3. Turn on EPB Switch.
  4. Monitor parameter on "Current Data" with KDS/GDS.

    Specification  : Refer to Fig 1 Below

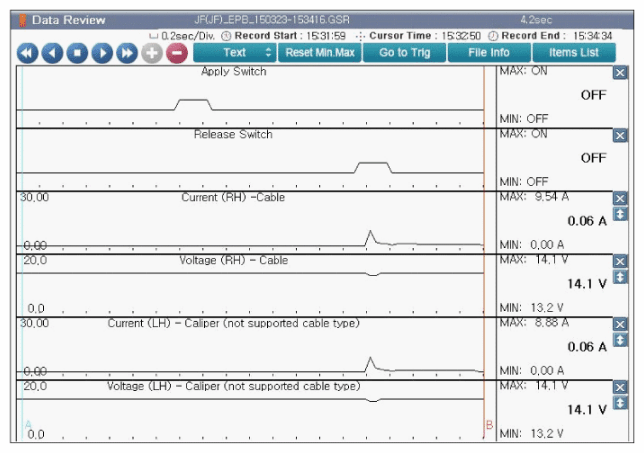

    Fig 1: Monitoring Parameter On Current Data With KDS/GDS
    G12137382Courtesy of KIA MOTORS AMERICA, INC.
  5. Is parameter displayed within specification?

    YES

    • Fault is intermittent caused by poor contact in the EPB ECU's connector or was repaired and EPB ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair " procedure.

    NO
