Charging System: Battery
AGM70L - DIN
BATTERY SPECIFICATIONS (AGM70L - DIN)
| Item | Specification |
|---|---|
| Capacity [20 hr/5 hr] (AH) | 70/56 |
| Cold Cranking Amperage (A) | 760 (SAE)/608 (EN) |
| Reserve Capacity (Min) | 120 |
| Specific Gravity | 1.28 - 1.34 [25°C(77°F)] |
| Voltage (V) | 12 |
AGM80L - DIN
BATTERY SPECIFICATIONS (AGM80L - DIN)
| Item | Specification |
|---|---|
| Capacity [20 hr/5 hr] (AH) | 80/64 |
| Cold Cranking Amperage (A) | 800 (SAE)/640 (EN) |
| Reserve Capacity (Min) | 155 |
| Specific Gravity | 1.28 - 1.34 [25°C(77°F)] |
| Voltage (V) | 12 |
Information

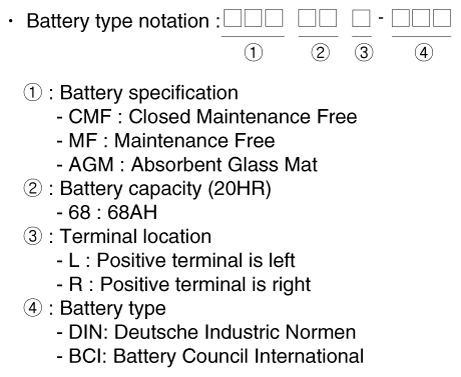

- Model type description
- Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.
- The rating is the number of amps a new, fully charged battery can deliver at -18°C(-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.
- The higher the CCA rating, the greater the starting power of the battery.
- RESERVE CAPACITY (RC): Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.
- The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.
- The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.
