Repair Procedures: Removal

CAUTION:
  • Put on gloves to protect your hands.
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

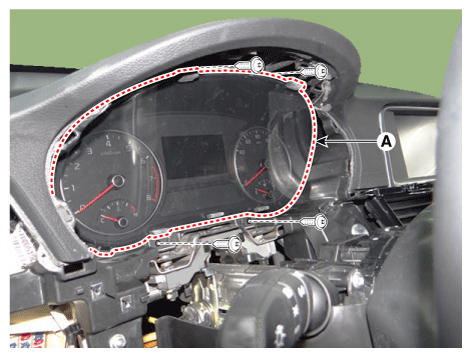

  3. Separate the instrument cluster (A) after loosening the mounting screws.
    G12351454Courtesy of KIA MOTORS AMERICA, INC.

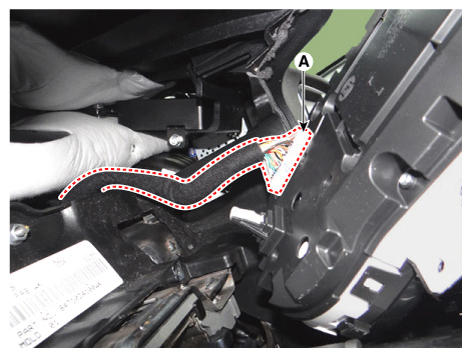

  4. Remove the instrument cluster after disconnecting the cluster connector (A).
G12351455Courtesy of KIA MOTORS AMERICA, INC.
