Description And Operation: Description: Function
- High speed CAN communication (C-CAN)
- Custom Function: Boarding interlocking sheets, Welcome Light
- LDWS: Lane Departure Warning System
- SPAS: Smart Parking Assist System
- Low speed CAN communication (MM-CAN)
- AV: Audio/Video Multimedia information Display
- TBT: Turn By Turn Navigation Information Display
- Sound output

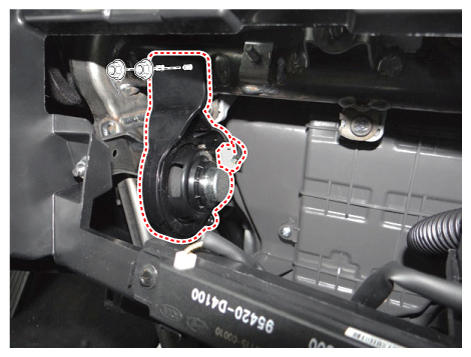

Instrument cluster and the external speakers are used to set off various warning sounds and sound effects.
If external amps are applied, the directional alarm will be set off via the amps.
Sound Description and function (CAN data receiver) Ready Ready (IGN ON, Hybrid Control Unit(HCU)) Goodbye Goodbye (Cluster) Door Open warning Kwy reminder warning (BCM), Vehicle speed is 5km/h or below & IGN switch is ACC or IGN or engine start & when vehicle speed is below 5 km/h or when the driver side door is opened Seat belt warning Driver seat belt warning (BCM) PAS System warning PAS sensor fault warning (BCM) Gear R PAS warning when shift gear R (BCM and SPAS) Parking Brake Parking brake warning (BCM) Start button SSB button warning (SMK) Rheostat light information Rheostat warning when select the max or min degree (Cluster) Smart Key departure Smart key out warning (SMK) Non smart key warning (SMK) Smart Cruise Change from the conventional cruise to the smart cruise(SCC) Smart cruise driving information Smart cruise function cancel (SCC) conventional cruise Change from the smart cruise to the conventional cruise(SCC) Turn signal lamp (Tick) Turn signal lamp warning (BCM) Turn signal lamp (Tock) Turn signal lamp warning (BCM) Smart key battery low voltage Warning when driver push the SSB button with low voltage battery smart key (SMK) EPB warning Warning when change from Auto Hold to EPB lock (EPB) Coolant temperature alarm When the engine temperature is over 120 °C (EMS) - User Setting Mode (USM)
Setting can be changed by using switchs (Menu, UP, Down and OK button). There are many items (for example, In/Out Seat Synchronization, In/Out Steering Wheel Synchronization, Auto Door Lock, Auto Door Lock Deactivate, Head Lamp Escort, Welcome Light, Welcome Sound, One Touch Turn Signal, Average Fuel Consumption Auto Reset, Brightness, and Content Setup) that can be set and customized. The signal flow during setting is as follows.
- After setting, UMS settings are transmitted to BCM.
- BCM transmits the settings via B_CAN to the relevant modules.
- The module completes setting and transmits the modified setting to BCM.
- BCM transmits the final settings via C_CAN to the cluster.
Information
The cluster communicates directly with C-CAN units.
