[Steering Column Shroud Upper Panel]

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Using a remover, remove the crash pad side cover [LH] (A).

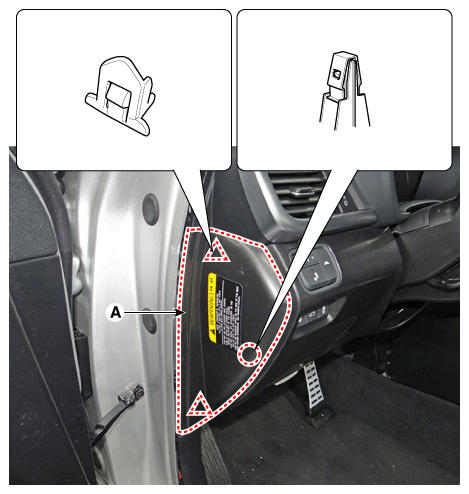

   Fig 1: Locating Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the crash pad lower panel (A) after loosening the screw.

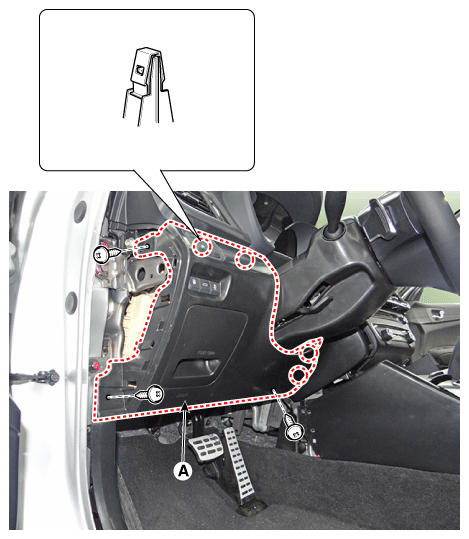

   Fig 2: Locating Crash Pad Lower Panel With Screw

   Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the crash pad lower panel connector (A).

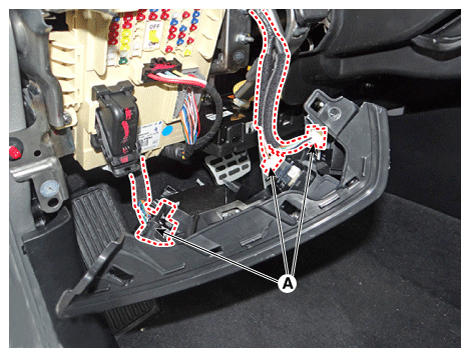

   Fig 3: Locating Crash Pad Lower Panel Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Remove the crash pad garnish [LH] (A) after loosening the screw.

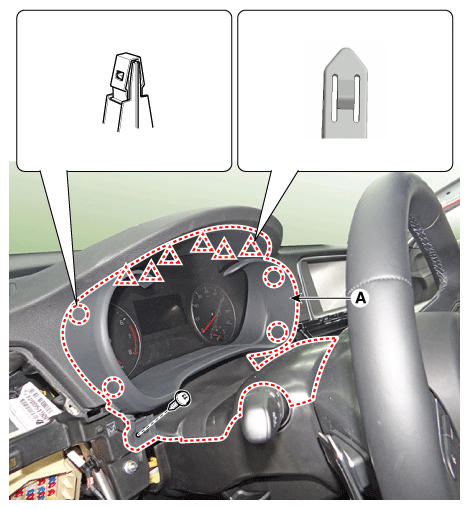

   Fig 4: Locating Crash Pad Garnish (LH) With Screws

   Courtesy of KIA MOTORS AMERICA, INC.
5. Using a remover, remove the cluster fascia panel (A).

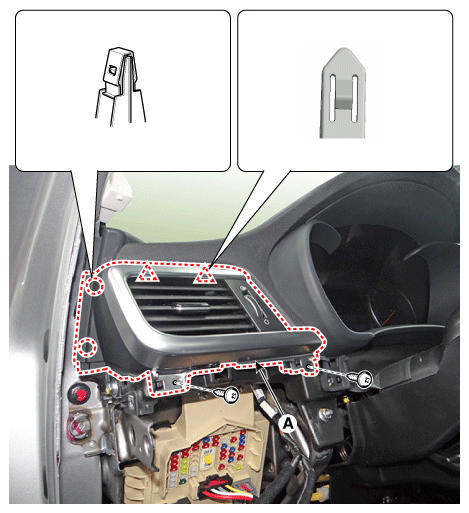

   Fig 5: Locating Cluster Fascia Panel

   Courtesy of KIA MOTORS AMERICA, INC.
6. Install in the reverse order of removal.

Information

• Make sure the connector are connected in properly.
• Replace any damaged clips.

[Steering column shroud lower panel]

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the crash pad lower panel.

   (Refer to Crash Pad - "Crash Pad Lower Panel ")

2. Remove the steering column shroud lower panel (A) loosening the mounting screws.

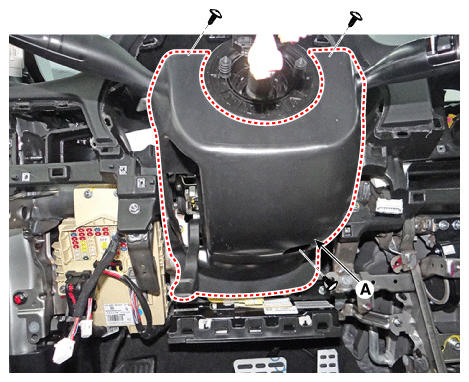

   Fig 6: Locating Steering Column Shroud Lower Panel With Mounting Screws

   Courtesy of KIA MOTORS AMERICA, INC.
3. Install in the reverse order of removal.

Information

• Make sure the connector are connected in properly.
• Replace any damaged clips.
