Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Remove the front seat assembly (both sides).

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

3. Remove the floor console assembly.

   (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

4. Remove the cluster fascia panel.

   (Refer to Crash Pad - "CLUSTER FASCIA PANEL ")

5. Remove the glove box housing.

   (Refer to Crash Pad - "Glove Box Housing ")

6. Remove the center fascia panel and center fascia lower panel.

   (Refer to Crash Pad - "Center Fascia Panel ")

7. Remove the crash pad main lower panel.

   (Refer to Crash Pad - "Crash Pad Center Panel ")

8. Remove the steering wheel.

   (Refer to Steering System - "STEERING WHEEL ")

9. Remove the steering column shroud lower panel.

   (Refer to Crash Pad - "Steering Column Shroud Panel ")

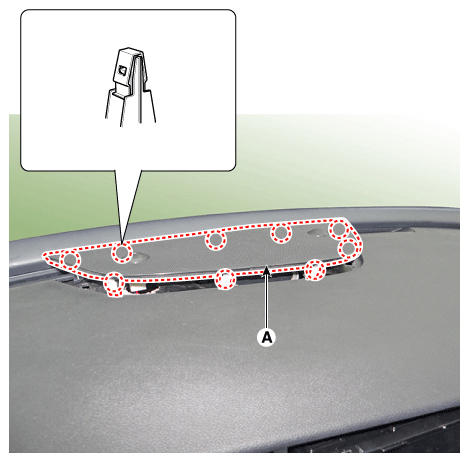

10. Using a remover, remove the center speaker grill (A).
    Fig 1: Locating Center Speaker Grill

    Courtesy of KIA MOTORS AMERICA, INC.

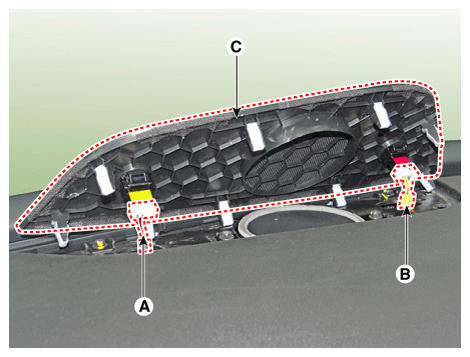

11. Disconnect the photo sensor connector (A) and auto light sensor connector (B) and then remove the center speaker grill (C).
    Fig 2: Locating Photo Sensor Connector, Auto Light Sensor Connector And Center Speaker Grill

    Courtesy of KIA MOTORS AMERICA, INC.

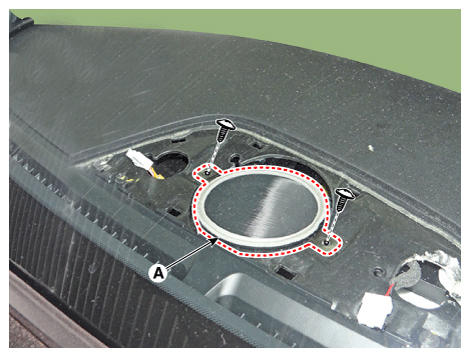

12. Separate the center speaker (A) after loosening the screw.
    Fig 3: Locating Center Speaker With Screw

    Courtesy of KIA MOTORS AMERICA, INC.

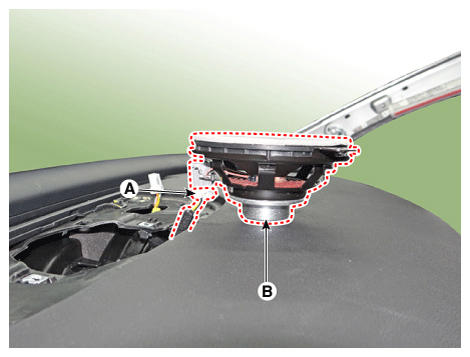

13. Remove the center speaker (B) after disconnecting the connector (A).
    Fig 4: Locating Center Speaker And Connector

    Courtesy of KIA MOTORS AMERICA, INC.

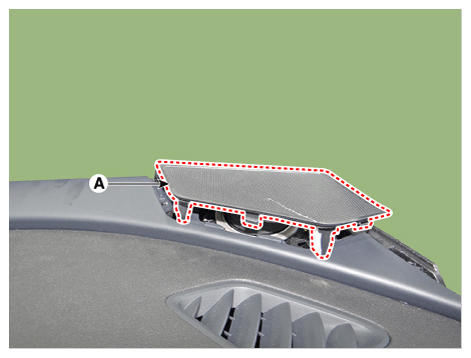

14. Remove the both sides mid range speaker grill (A) by using a remover.
    Fig 5: Locating Mid Range Speaker Grill

    Courtesy of KIA MOTORS AMERICA, INC.

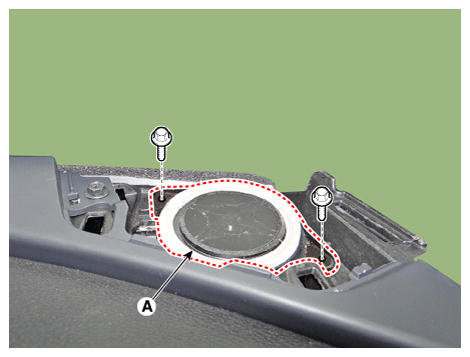

15. Separate the both sides mid range speaker (A) after loosening the mounting bolts.
    Fig 6: Locating Mid Range Speaker With Mounting Bolts

    Courtesy of KIA MOTORS AMERICA, INC.

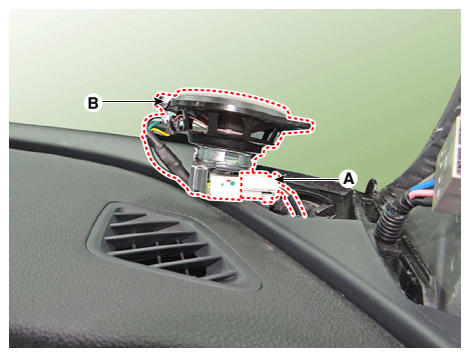

16. Remove the both sides mid range speaker (B) after disconnecting the connector (A).
    Fig 7: Locating Mid Range Speaker And Connector

    Courtesy of KIA MOTORS AMERICA, INC.

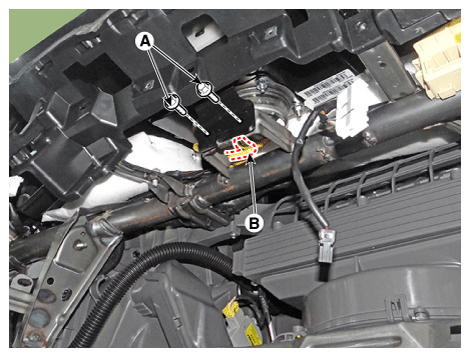

17. Disconnect the airbag connector (B) and loosen the mounting bolts (A).
    Fig 8: Locating Airbag Connector With Mounting Bolts

    Courtesy of KIA MOTORS AMERICA, INC.

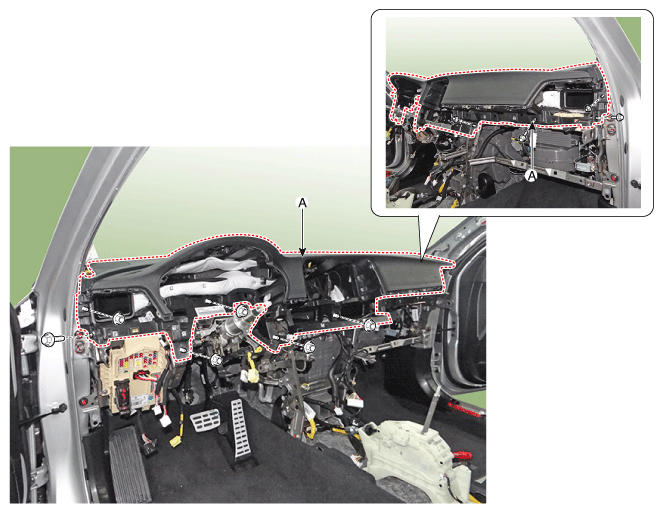

18. Remove the main crash pad assembly (A) after loosening the mounting bolts & nuts.
    Fig 9: Locating Main Crash Pad Assembly With Mounting Bolts And Nuts

    Courtesy of KIA MOTORS AMERICA, INC.

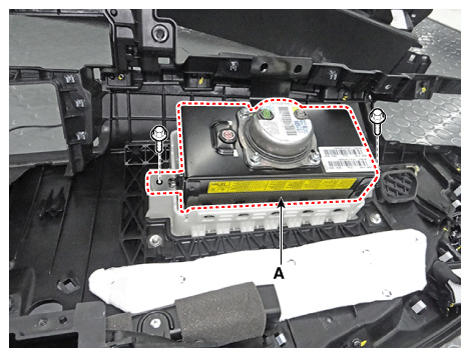

19. Remove the passenger airbag (A) after loosening the mounting bolts.
    Fig 10: Locating Passenger Airbag With Mounting Bolts

    Courtesy of KIA MOTORS AMERICA, INC.
20. Install in the reverse order of removal.

Information

• Make sure the connector are connected in properly.
• Replace any damaged clips.
