Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

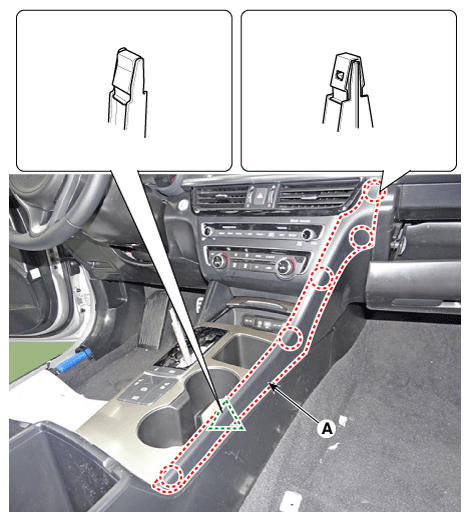

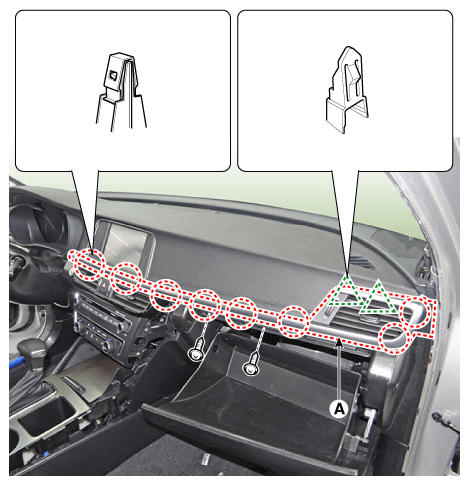

1. Using a remover, remove the console garnish (A).
   Fig 1: Locating Console Garnish

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the glove box mounting hole cap (A).
   Fig 2: Locating Glove Box Mounting Hole Cap

   Courtesy of KIA MOTORS AMERICA, INC.

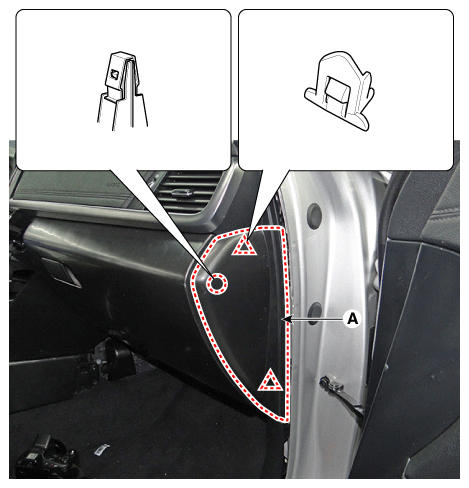

3. Using a remover, remove the crash pad side cover [RH] (A).
   Fig 3: Locating Crash Pad Side Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

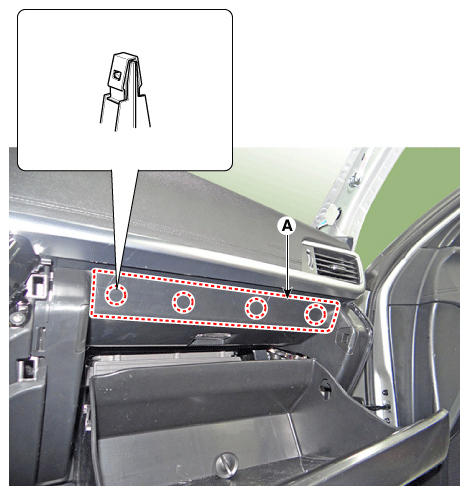

4. Remove the crash pad garnish [LH] (A).
   Fig 4: Locating Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

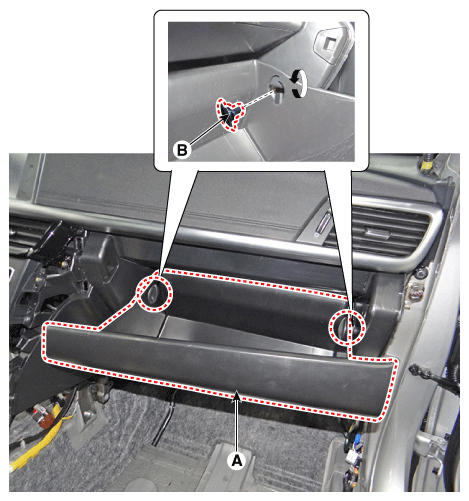

5. Disconnect the stopper (B) from the glove box (A).
   Fig 5: Disconnecting Stopper From Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.

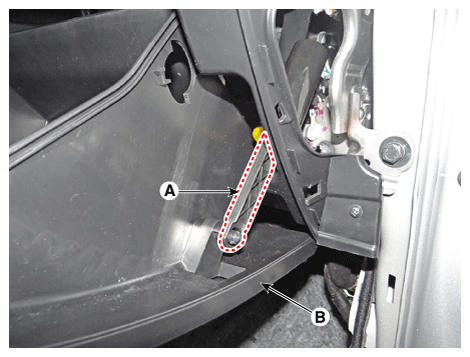

6. Disconnect the air damper (A) from the glove box (B).
   Fig 6: Locating Air Damper And Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.

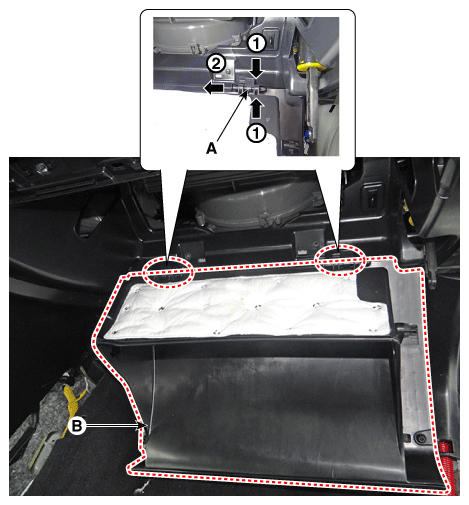

7. Disconnect the pins (A) and then remove the glove box (B).
   Fig 7: Disconnecting Pins

   Courtesy of KIA MOTORS AMERICA, INC.

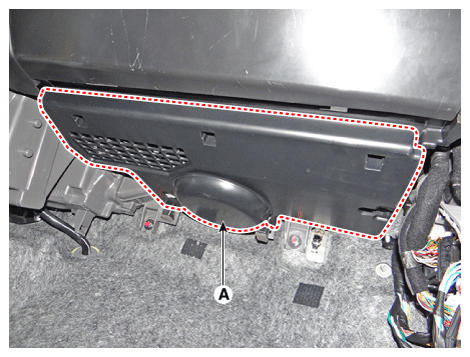

8. Remove the crash pad under cover [RH] (A).
   Fig 8: Locating Crash Pad Under Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

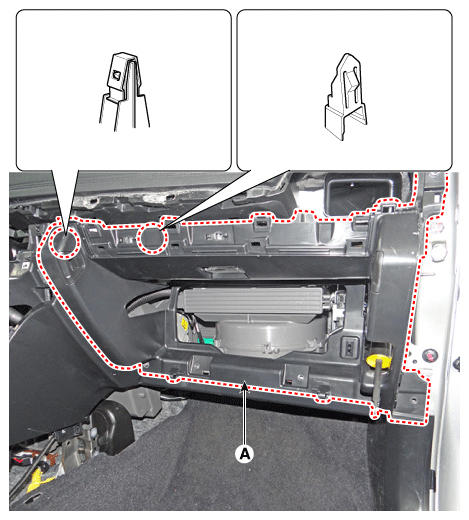

9. Separate the glove box housing (A) after loosening the mounting screws and bolts & nuts.
   Fig 9: Locating Glove Box Housing With Mounting Screws, Bolts And Nuts

   Courtesy of KIA MOTORS AMERICA, INC.

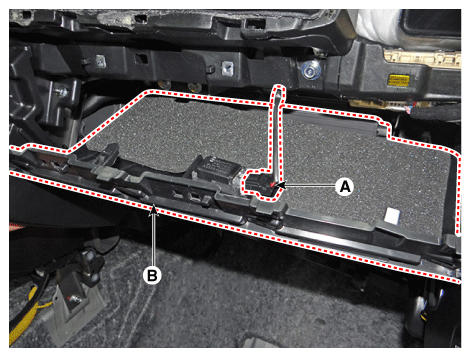

10. Disconnect the glove box lamp connector (A) and glove box housing (B).
    Fig 10: Locating Glove Box Lamp Connector And Glove Box Housing

    Courtesy of KIA MOTORS AMERICA, INC.
11. Install in the reverse order of removal.

Information

• Make sure the connector are connected in properly.
• Replace any damaged clips.
