Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the floor console assembly.

   (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

2. Remove the cluster fascia panel.

   (Refer to Floor Console - "CLUSTER FASCIA PANEL ")

3. Remove the glove box housing.

   (Refer to Crash Pad - "Glove Box Housing ")

4. Remove the center fascia panel and center fascia lower panel.

   (Refer to Crash Pad - "Center Fascia Panel ")

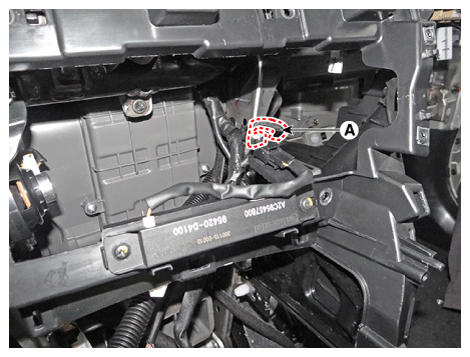

5. Disconnect the smart antenna connector (A).
   Fig 1: Locating Smart Antenna Connector

   Courtesy of KIA MOTORS AMERICA, INC.

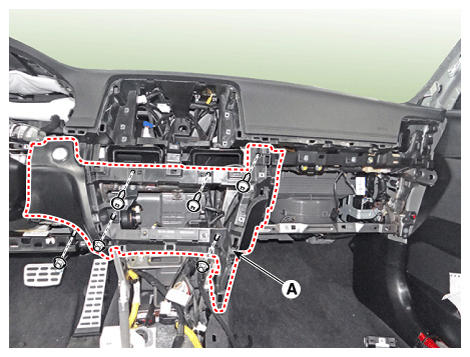

6. Separate the crash pad center panel (A) after loosening the nuts & screw.
   Fig 2: Locating Crash Pad Center Panel With Nuts And Screw

   Courtesy of KIA MOTORS AMERICA, INC.

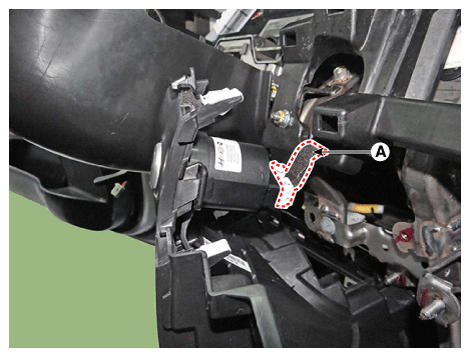

7. Disconnect the start/stop button connector (A).
   Fig 3: Locating Start/Stop Button Connector

   Courtesy of KIA MOTORS AMERICA, INC.
8. Install in the reverse order of removal.

Information

• Make sure the connector are connected in properly.
• Replace any damaged clips.
