Power Circuit Inspection

Ignition "OFF".
Disconnect Passenger side Bodysensor ECU connector.
Ignition "ON"
Measure Voltage between Pin No. 3 (ON/START Input) terminal of the Passenger side Body sensor ECU harness connector and chassis ground.
Specification: Approx B+

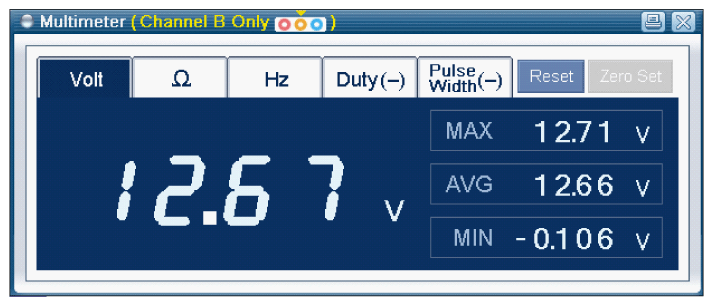

Fig 1: Screen Display - KDS/GDS Multimeter Voltage Check
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured voltage within specifications?
YES
- Go to "Ground Circuit Inspection " procedure.
NO
- Check for open and short to ground in harness.
- Repair as necessary and then go to "Verification of Vehicle Repair " procedure.
