Monitor KDS/GDS Data

  1. Ignition "OFF", connect KDS/GDS.
  2. Ignition "ON", select "Current Data  " mode.
  3. Monitor the "Read Class Status" parameter on the KDS/GDS.

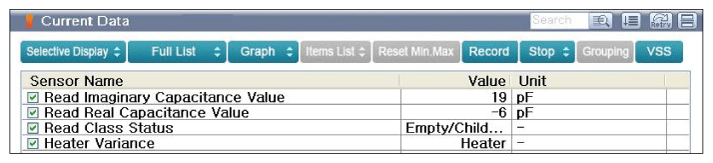

    Fig 1: Screen Display - Passenger Unoccupied
    G12133937Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Screen Display - Passenger Occupied
    G12133938Courtesy of KIA MOTORS AMERICA, INC.
  4. Has a problem been found?

    YES

    NO

    • Fault is intermittent caused by poor contact in the part's and/or Passenger side Body sensor Mat & ECU connector or was repaired and Passenger side Body sensor Mat & ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
