Optima LX 1.6T
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Airbag System Diagnosis (2 Of 2) (Except HEV)
>>
DTC B1732-00: Anchor Pretensioner Front-Driver Resistance Circuit Short To Ground
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

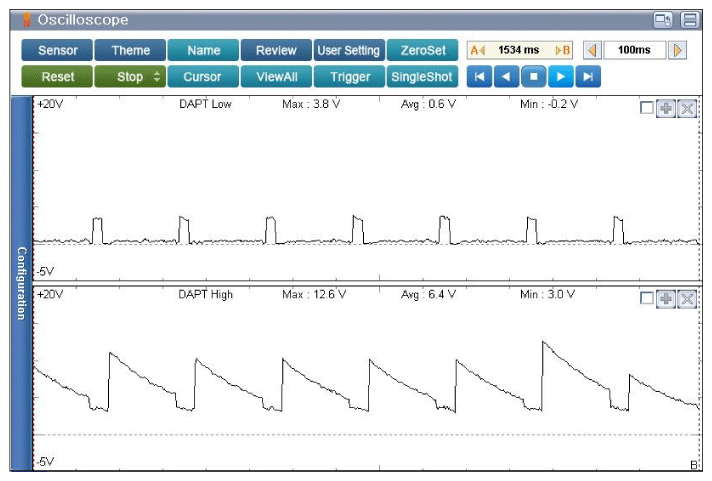

Fig 1: Screen Display - Signal Waveform (Low & High) Of Anchor Pretensioner Front-Driver (Connector Disconnected)
