Monitor KDS/GDS Data

  1. Ignition "OFF", connect KDS/GDS.
  2. Ignition "ON", select "Current Data  " mode.
  3. Monitor the "Buckle (Anchor) Driver Pretensioner resistance" parameter on the KDS/GDS.

    Specification:  1.0Ω< Resistance of Anchor Pretensioner front-Driver< 7.0Ω

    Reference:

    In a case of an open in the Anchor Pretensioner front-Driver circuit: FAIL

    In a case of a short to battery in the Anchor Pretensioner front-Driver circuit: FAIL

    In a case of a short to ground in the Anchor Pretensioner front-Driver circuit: FAIL

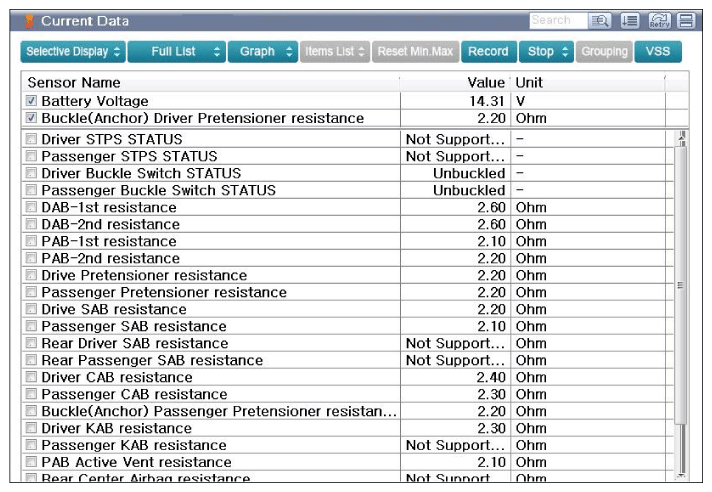

    Fig 1: Monitoring Buckle (Anchor) Driver Pretensioner Resistance Parameter On KDS/GDS (Normal Data)
    G12133840Courtesy of KIA MOTORS AMERICA, INC.
  4. Is parameter displayed within specifications?

    YES

    • Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

    NO
