Main harness Circuit Inspection

Ignition "OFF".
Disconnect the battery (-) cable and wait at least for one minute.
Disconnect Buckle Switch Passenger connector and SRSCM main harness connector.
Connect the battery (-) terminal cable to the battery and Ignition "ON"
Measure resistance between Pin No. 7 (High) terminal of the Buckle Switch Passenger harness connector and chassis ground.
Specification: ∞ (Infinite)Ω

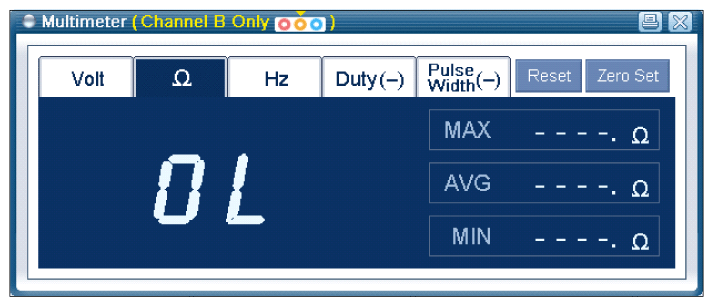

Fig 1: Screen Display - KDS/GDS Multimeter Resistance Check
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured resistance within specifications?
YES
- Go to "Component Inspection " procedure.
NO
- Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Carefully re-do this troubleshooting guide steps.
- If problem still occurs, replace SRSCM main harness and then go to "Verification of Vehicle Repair " procedure.
