Body Sensor Reset

Ignition "OFF", connect KDS/GDS.
Ignition "ON", select Passenger Occupant Detecting System and select "Body Sensor Reset" mode.
And then press "ENTER"

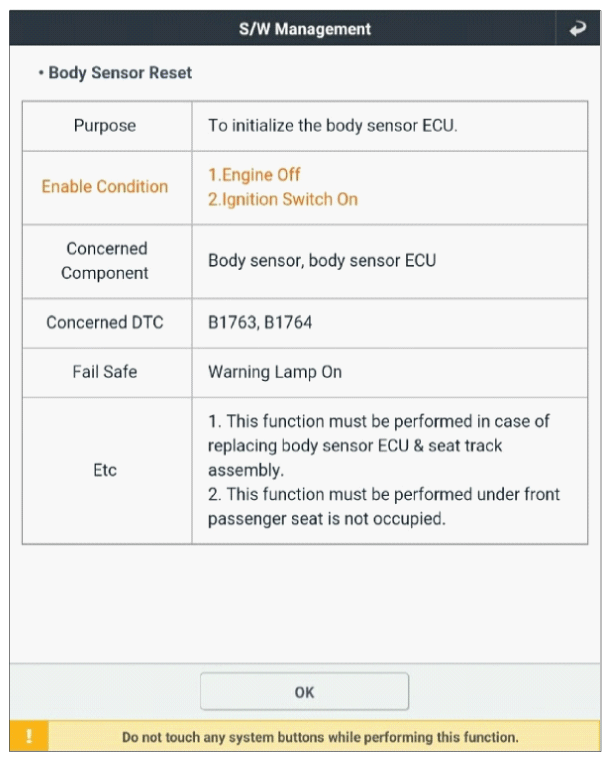

Fig 1: Screen Display - Body Sensor Reset 1
Courtesy of KIA MOTORS AMERICA, INC.

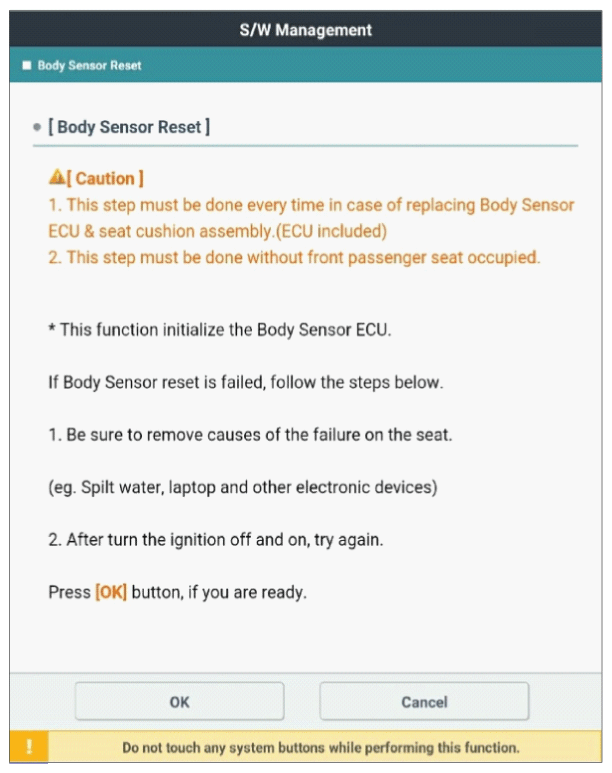

Fig 2: Screen Display - Body Sensor Reset 2
Courtesy of KIA MOTORS AMERICA, INC.

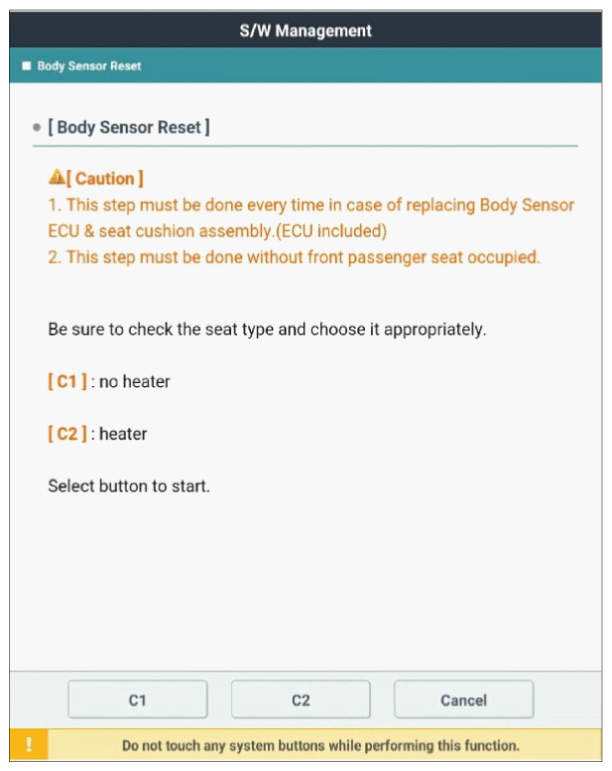

Fig 3: Screen Display - Body Sensor 3
Courtesy of KIA MOTORS AMERICA, INC.

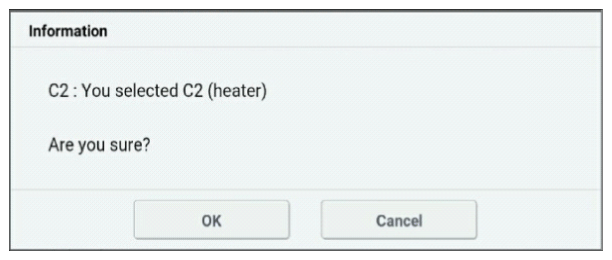

Fig 4: Screen Display - Body Sensor 4
Courtesy of KIA MOTORS AMERICA, INC.

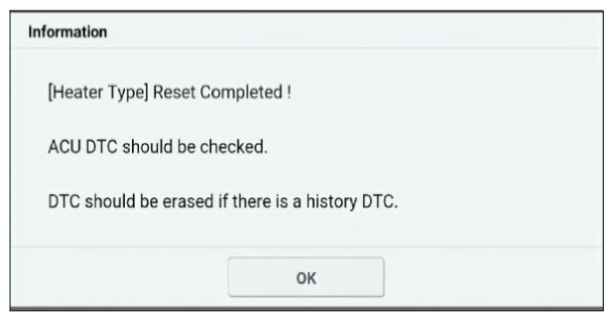

Fig 5: Screen Display - Body Sensor 5
Courtesy of KIA MOTORS AMERICA, INC.
Turn Ignition "OFF" and then "ON"
Monitor "Diagnostic Trouble Codes (DTC) " with KDS/GDS.
Clear all DTCs in the system with KDS/GDS.
Re-check DTC in the system with KDS/GDS.
Is DTC stored in the system?
YES
- Go to "Wiring Inspection " procedure.
NO
- Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
