Components and Components Location: Components

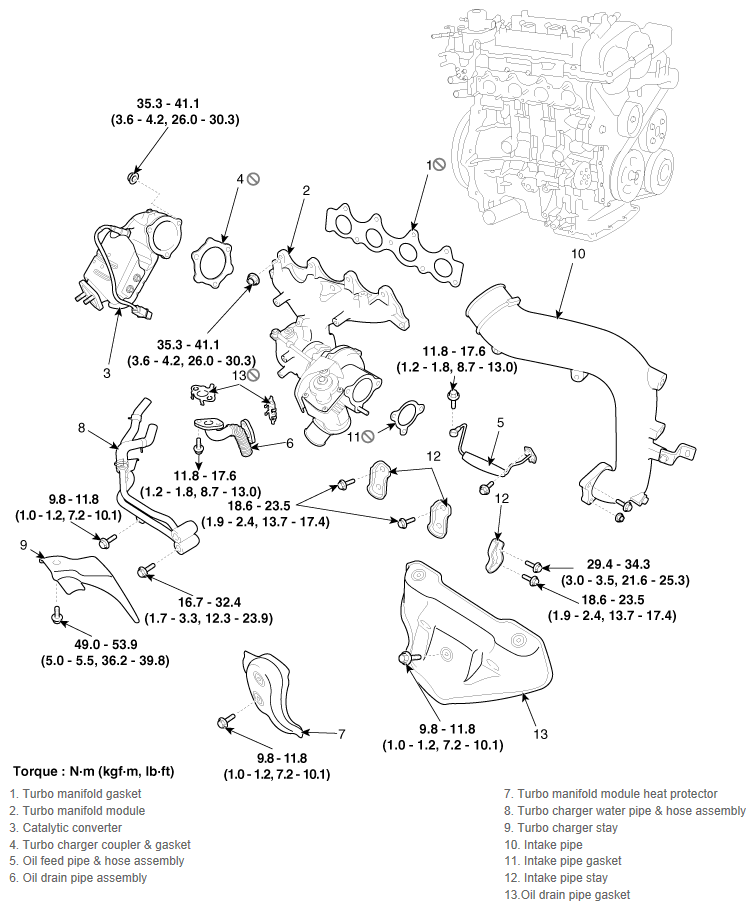

Fig 1: Turbocharger, Exhaust Manifold And Catalytic Converter Components With Torque Specification

Courtesy of KIA MOTORS AMERICA, INC.

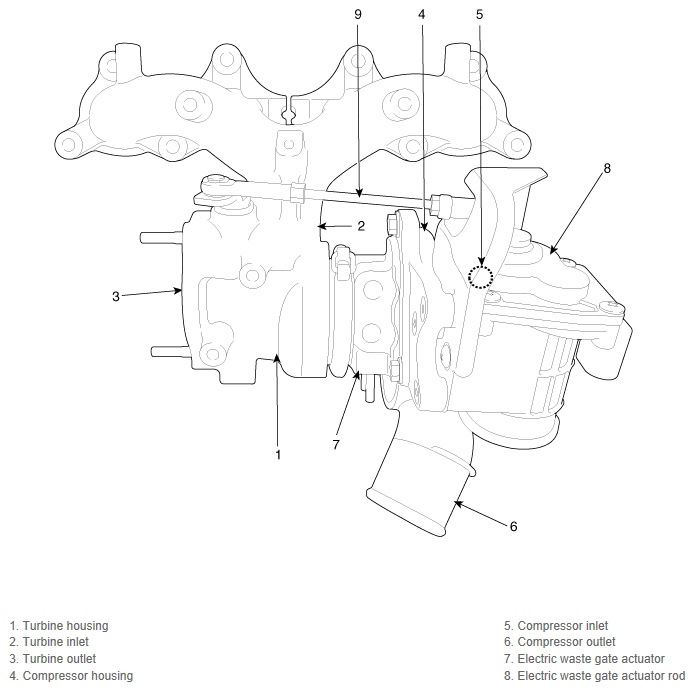

Fig 2: Turbocharger & Exhaust Manifold Components

Courtesy of KIA MOTORS AMERICA, INC.
