Front Muffler

  1. Disconnect the battery negative terminal.
  2. Disconnect the rear oxygen sensor connector (A).

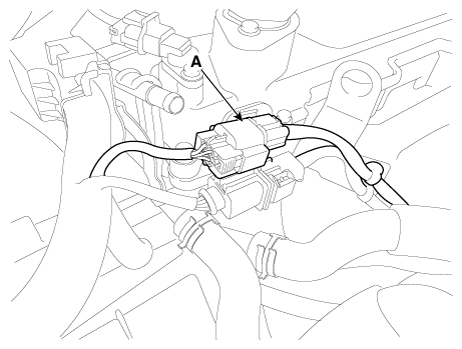

    Fig 1: Locating Rear Oxygen Sensor Connector
    G12139830Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front muffler hanger (A).
  4. Remove the front muffler (B).

    Tightening torque  :

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

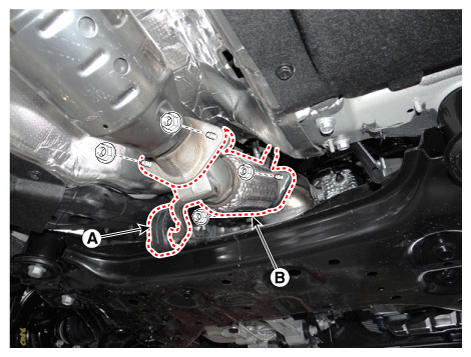

    Fig 2: Locating Front Muffler And Front Muffler Hanger
    G12139831Courtesy of KIA MOTORS AMERICA, INC.
