Catalytic Converter & Center Muffler: Notes

  1. Remove the RH floor under cover (A).

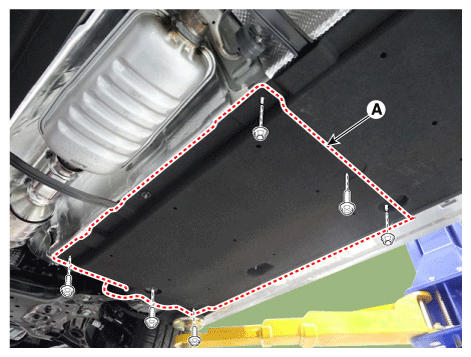

    Fig 1: Locating RH Floor Under Cover With Bolts
    G12139832Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the LH floor under cover (A).

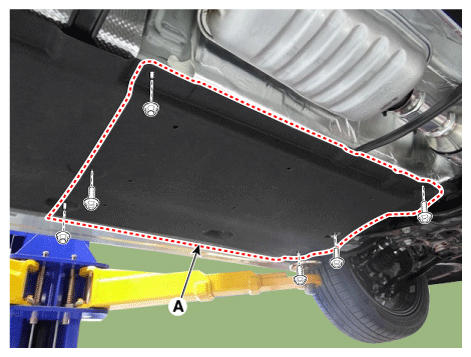

    Fig 2: Locating LH Floor Under Cover With Bolts
    G12139833Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the bracket (A).
  4. Detach the rubber hanger (B) from the catalytic converter & center muffler.
  5. Remove the catalytic converter & center muffler (C).

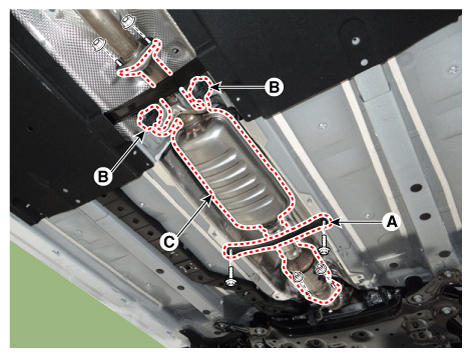

    Fig 3: Locating Bracket, Rubber Hanger, Catalytic Converter Or Center Muffler With Bolts
    G12139834Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
