Removal and Installation

Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")
Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Cooling System - "COOLANT ")
Disconnect the battery negative terminal.
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "Air Cleaner ")
Disconnect the engine wiring connector and harness clamp and disconnect the wiring from intake manifold.

Fig 1: Engine Wiring Connector And Harness Clamp
Courtesy of KIA MOTORS AMERICA, INC.

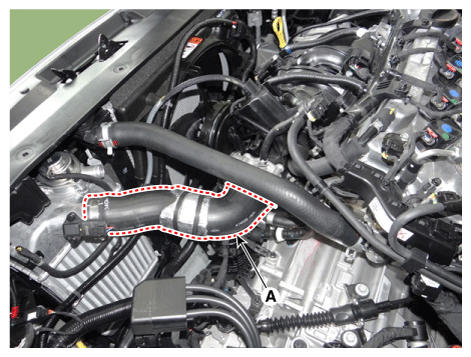

Disconnect the intercooler outlet hose.

Fig 2: Locating Intercooler Outlet Hose
Courtesy of KIA MOTORS AMERICA, INC.

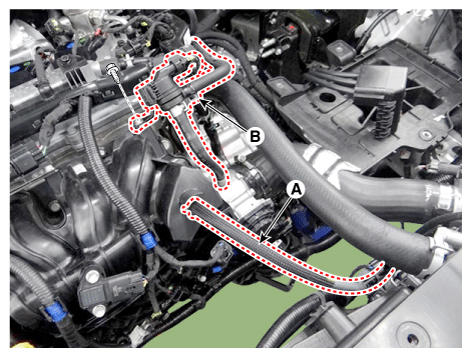

Disconnect the RCV solenoid valve hose (A), and then remove the purge control solenoid valve (PCSV) (B).

Fig 3: Locating RCV Solenoid Valve Hose And Purge Control Solenoid Valve
Courtesy of KIA MOTORS AMERICA, INC.

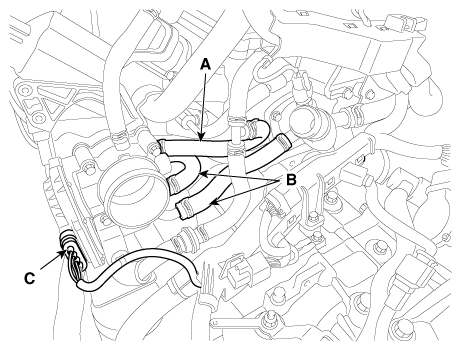

Disconnect the vacuum hose (A), throttle body coolant hoses (B), and electric throttle control (ETC) module connector (C),

Fig 4: Locating Vacuum Hose, Throttle Body Coolant Hoses And Electric Throttle Control Module Connector
Courtesy of KIA MOTORS AMERICA, INC.

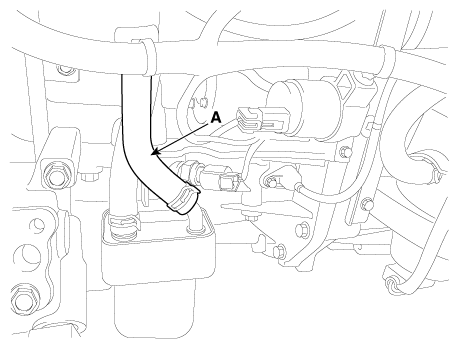

Disconnect the oil cooler hose (A).

Fig 5: Locating Oil Cooler Hose
Courtesy of KIA MOTORS AMERICA, INC.

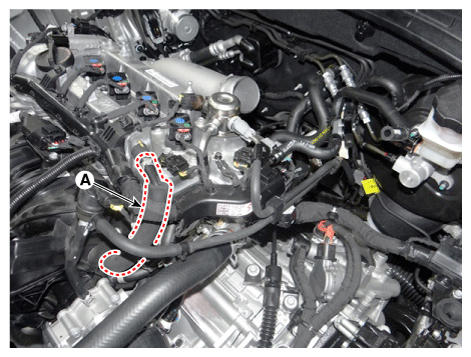

Disconnect the positive crankcase ventilation (PCV) hose (A).

Fig 6: Locating Positive Crankcase Ventilation Hose
Courtesy of KIA MOTORS AMERICA, INC.

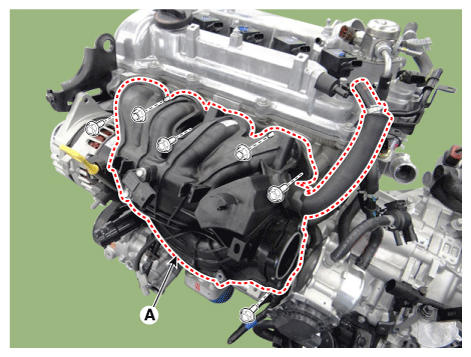

Remove the intake manifold (A) with the gasket.
Tightening torque :

18.6 - 23.5 N.m (1.9-2.4 kgf.m, 13.7-17.4 lb.ft)

Fig 7: Locating Intake Manifold With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- When installing, replace with new gaskets.

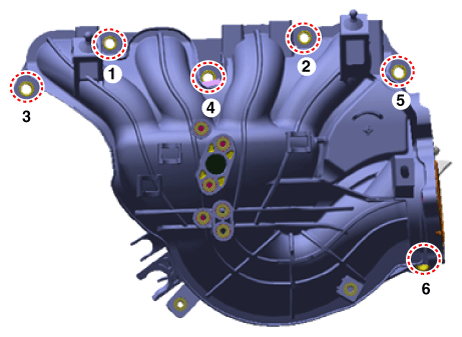

- When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.
Fig 8: Intake Manifold Bolts And Nuts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
