Air Cleaner Element Replacement

  1. Open the air cleaner element cover (A) by lifting up the air cleaner element cover handle (B).

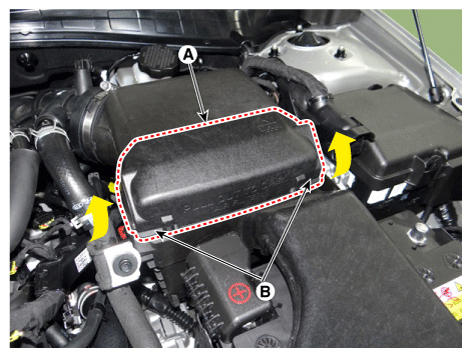

    Fig 1: Opening Air Cleaner Element Cover
    G12139789Courtesy of KIA MOTORS AMERICA, INC.
  2. Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.

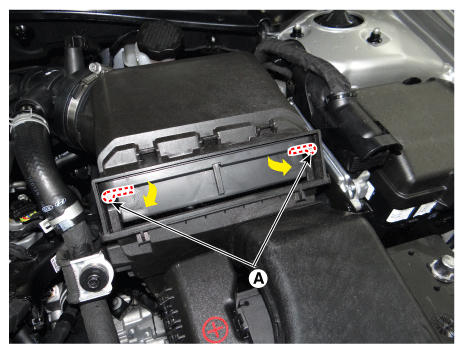

    Fig 2: Unlocking Air Cleaner Element Camshaft
    G12139790Courtesy of KIA MOTORS AMERICA, INC.
  3. Replace the air cleaner element (A) with a new one.

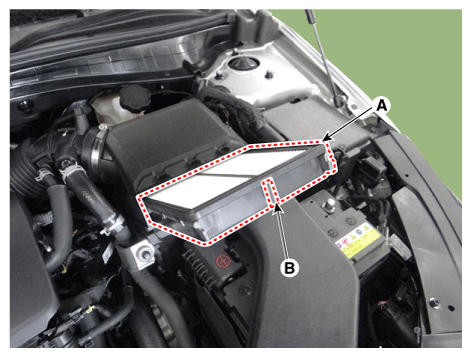

    Fig 3: Locating Air Cleaner Element And Handle
    G12139791Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Grab the handle (B) then pull out the air cleaner element.

  4. Close the service cover by hooking the clamp.
