[General Supervision]

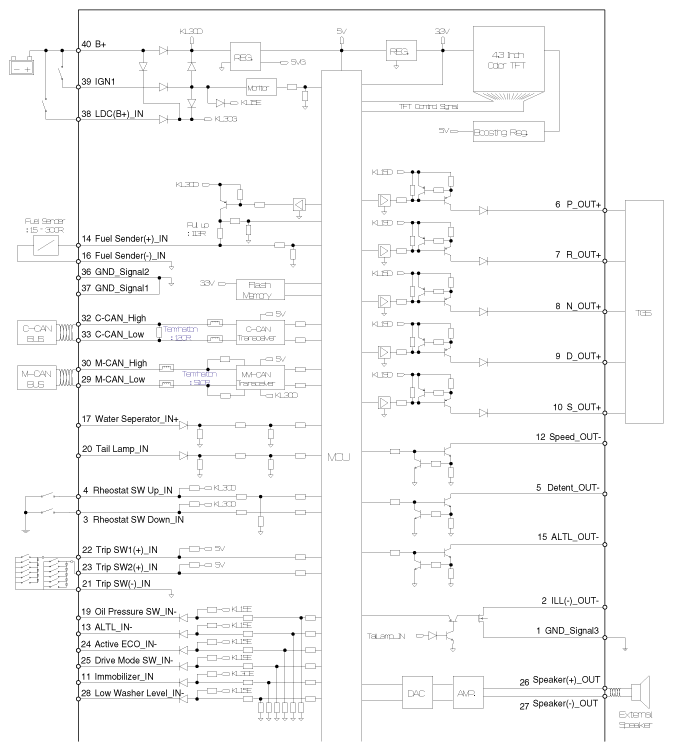

Fig 1: Instrument Cluster (General Supervision) Circuit (1 Of 2)
G12143240Courtesy of KIA MOTORS AMERICA, INC.

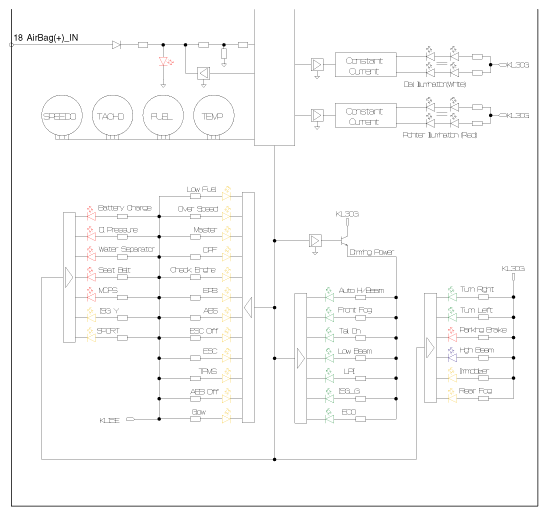

Fig 2: Instrument Cluster (General Supervision) Circuit (2 Of 2)
G12143241Courtesy of KIA MOTORS AMERICA, INC.
