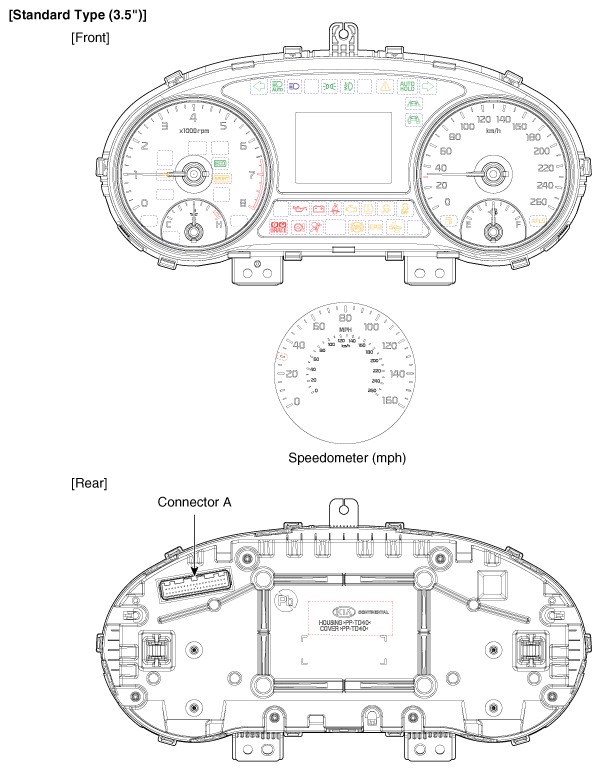

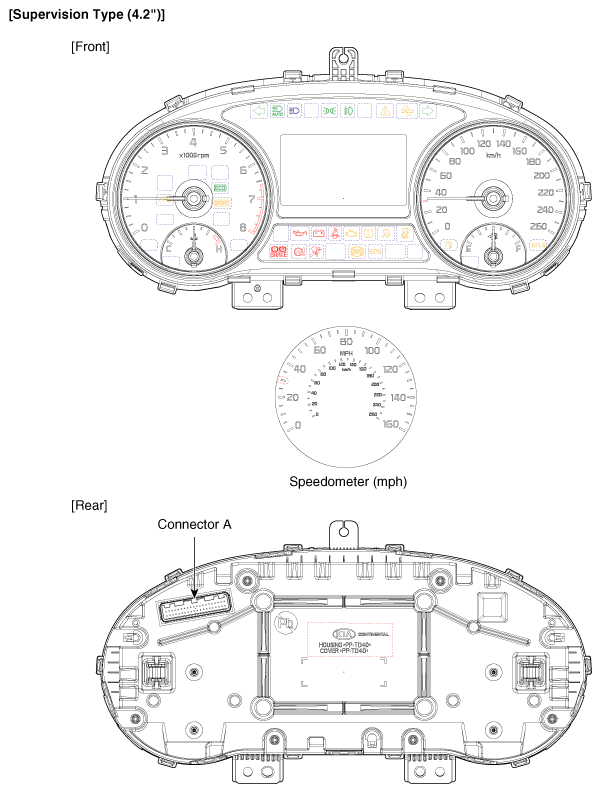

Components and Components Location: Components
Connector Pin Information
| No. | Description |
|---|---|
| 1 | GND |
| 2 | Illumination (-) |
| 3 | Rheostat switch (Down)_Input |
| 4 | Rheostat switch (Up)_Input |
| 5 | Dentent |
| 6 | AT ("P" Position) |
| 7 | AT ("R" Position) |
| 8 | AT ("N" Position) |
| 9 | AT ("D" Position) |
| 10 | AT ("S" Position) |
| 11 | Immobilizer_Input |
| 12 | Vehicle speed_Output |
| 13 | Alternator_Input (Gasoline only) |
| 14 | Fuel sender (+)_Input |
| 15 | - |
| 16 | Fuel sender (-)_Input |
| 17 | Water separator (Diesel only) |
| 18 | AIR BAG (+)_Input |
| 19 | Oil press switch_Input (Gasoline only) |
| 20 | Tail lamp_Input |
| 21 | Trip switch (-) |
| 22 | Trip switch 1 (+) |
| 23 | Trip switch 2 (+) |
| 24 | - |
| 25 | Drive mode switch_Input |
| 26 | Speaker (+) (Supervision type only) |
| 27 | Speaker (-) (Supervision type only) |
| 28 | Washer level low_signal |
| 29 | Multimedia-CAN (Low) |
| 30 | Multimedia-CAN (High) |
| 31 | - |
| 32 | Chassis-CAN (High) |
| 33 | Chassis-CAN (Low) |
| 34 | Spare1_Input |
| 35 | Spare2_Input |
| 36 | GND |
| 37 | GND |
| 38 | LDC (B+)_Input |
| 39 | IGN 1 |
| 40 | Battery (+) |
