[Center Fascia Lower Panel]

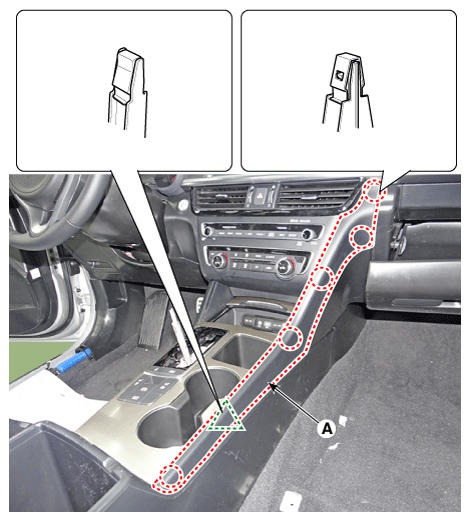

1. Using a remover, remove the console garnish (A).
   Fig 1: Locating Console Garnish

   Courtesy of KIA MOTORS AMERICA, INC.

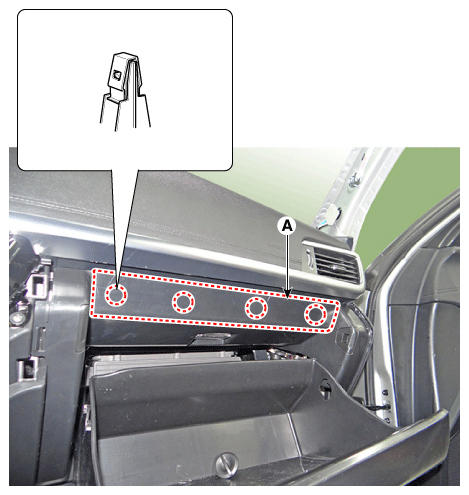

2. Remove the glove box mounting hole cap (A).
   Fig 2: Locating Glove Box Mounting Hole Cap

   Courtesy of KIA MOTORS AMERICA, INC.

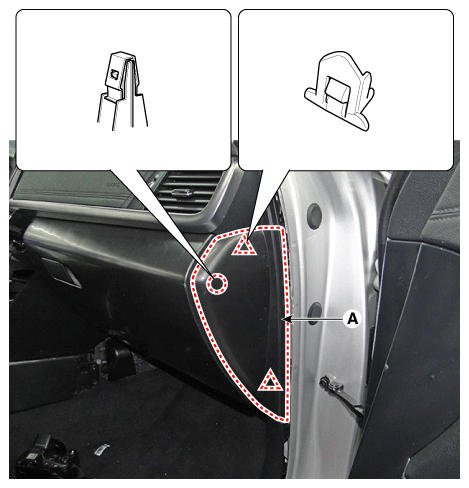

3. Using a remover, remove the crash pad side cover [RH] (A).
   Fig 3: Locating Crash Pad Side Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

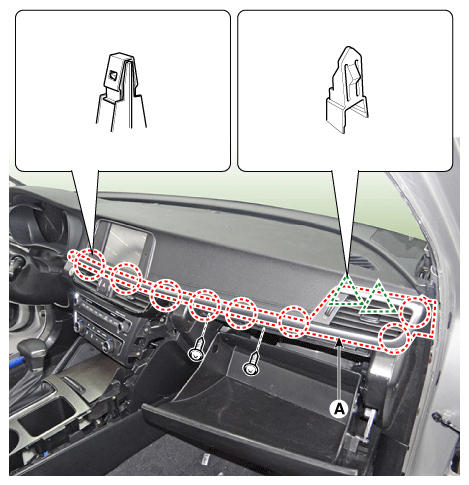

4. Remove the crash pad garnish [LH] (A).
   Fig 4: Locating Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

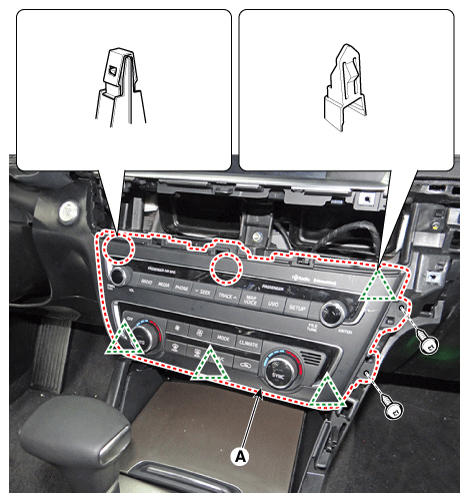

5. Separate the center fascia panel (A) after loosening the screw.
   Fig 5: Locating Center Fascia Panel With Screw

   Courtesy of KIA MOTORS AMERICA, INC.

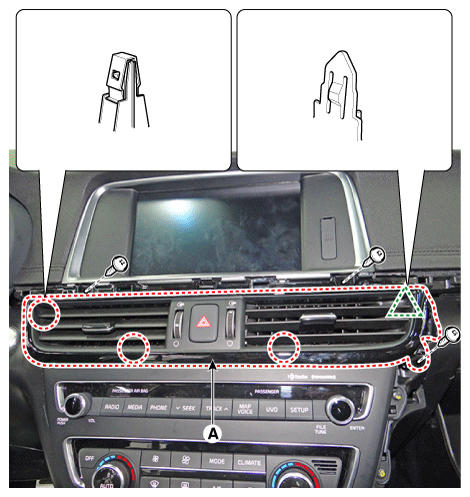

6. Disconnect the hazard switch connector (A) and then remove the center fascia panel (B).
   Fig 6: Locating Hazard Switch Connector And Center Fascia Panel

   Courtesy of KIA MOTORS AMERICA, INC.
7. Separate the center fascia lower panel (A) after loosening the screw.
   Fig 7: Locating Center Fascia Lower Panel With Screw

   Courtesy of KIA MOTORS AMERICA, INC.

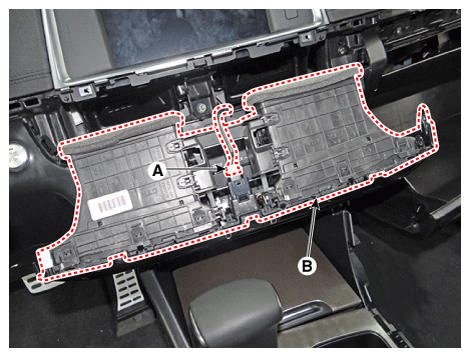

8. Disconnect the connectors & hose and remove the center fascia lower panel (A).

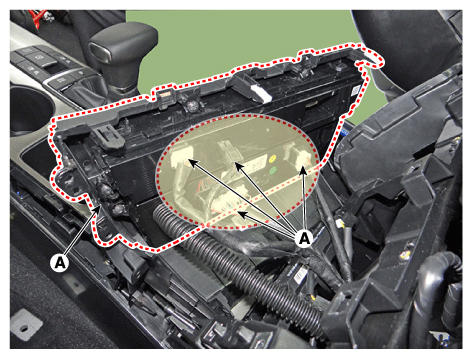

   Fig 8: Locating Center Fascia Lower Panel

   Courtesy of KIA MOTORS AMERICA, INC.

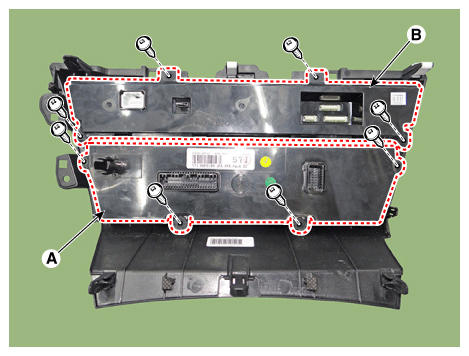

9. Remove the heater unit (A) & audio unit (B) after loosening the screw.
   Fig 9: Locating Heater Unit And Audio Unit With Screws

   Courtesy of KIA MOTORS AMERICA, INC.
10. Install in the reverse order of removal.

Information

• Make sure the connector are connected in properly.
• Replace any damaged clips.
