Instrument Cluster

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

  3. Separate the instrument cluster (A) after loosening the mounting screws.

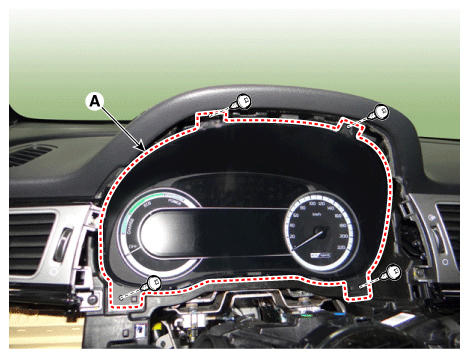

    Fig 1: Locating Instrument Cluster
    G12334720Courtesy of KIA MOTORS AMERICA, INC.
  4. Remover the instrument cluster after disconnecting the cluster connector (A).

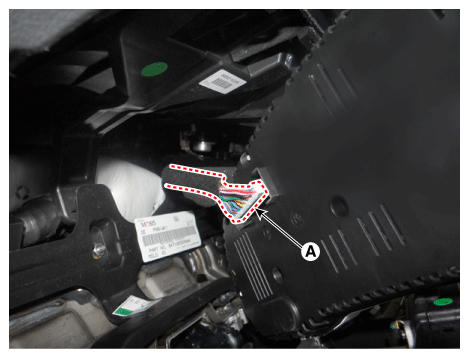

Fig 2: Locating Cluster Connector
G12334721Courtesy of KIA MOTORS AMERICA, INC.
