CLU Variant Coding

After replacing the cluster with a new one, must be performed the "Variant Coding" procedure.

1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel, turn the power on KDS/GDS.
2. Select model and "BCM".
3. Select Variant coding mode to perform.

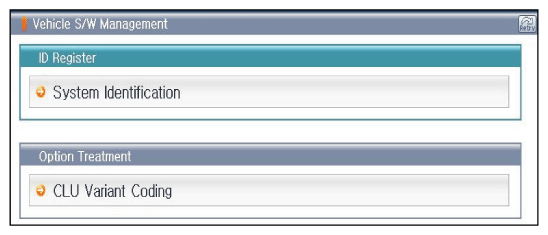

   Fig 1: Screen Display - Select Variant Coding Mode

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 2: Screen Display - Select Variant Coding Mode, Press OK Button

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Screen Display - Select Variant Coding Mode

   Courtesy of KIA MOTORS AMERICA, INC.
4. If the trouble codes occurred when performing variant coding, try the CLU variant coding again after checking the installation status of CLU system.

Fig 4: Screen Display - Installation Status Of CLU System

Courtesy of KIA MOTORS AMERICA, INC.
