[Steering Column Shroud Lower Panel]

1. Remove the steering column upper panel.
2. Loosen the mounting screws and remove the steering column shroud lower panel (A).

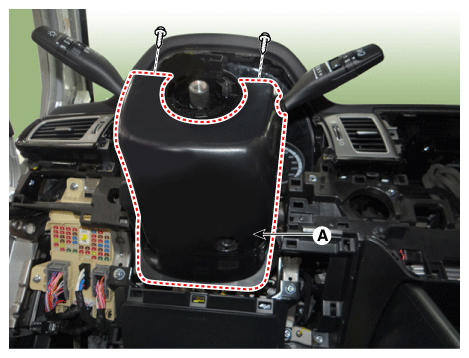

   Fig 1: Removing Steering Column Shroud Lower Panel Mounting Screws

   Courtesy of KIA MOTORS AMERICA, INC.
3. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
• Replace any damaged clips.
