Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

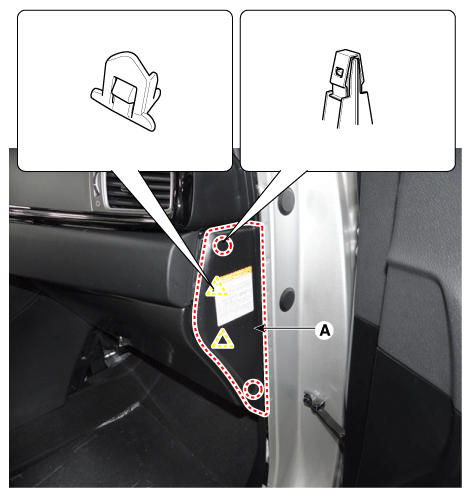

1. Remove the crash pad side cover [RH] (A) by using a remover.
   Fig 1: Removing Crash Pad Side Cover (RH) By Using Remover

   Courtesy of KIA MOTORS AMERICA, INC.

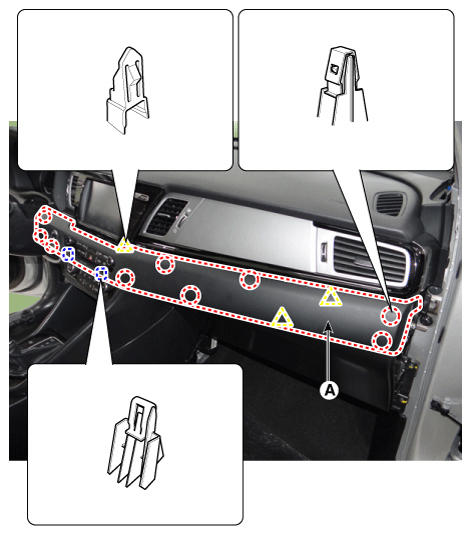

2. Remove the crash pad plate [RH] (A) by using a remover.
   Fig 2: Removing Crash Pad Plate (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

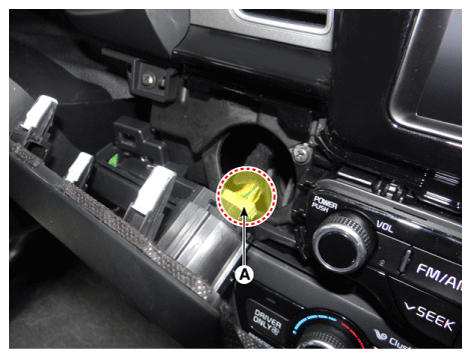

3. Disconnect the start/stop button connector (A).
   Fig 3: Locating Start/Stop Button Connector

   Courtesy of KIA MOTORS AMERICA, INC.

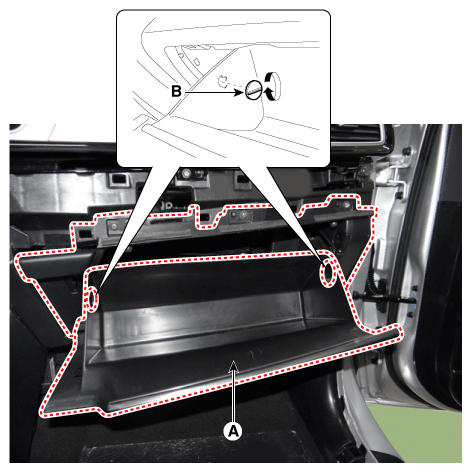

4. Disconnect the stopper (B) from the glove box (A).
   Fig 4: Disconnecting Stopper From Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.

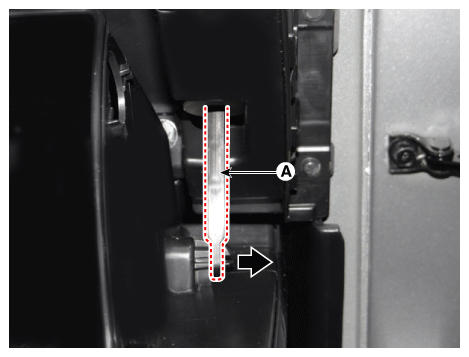

5. Disconnect the air damper (A) from the glove box.
   Fig 5: Locating Air Damper

   Courtesy of KIA MOTORS AMERICA, INC.

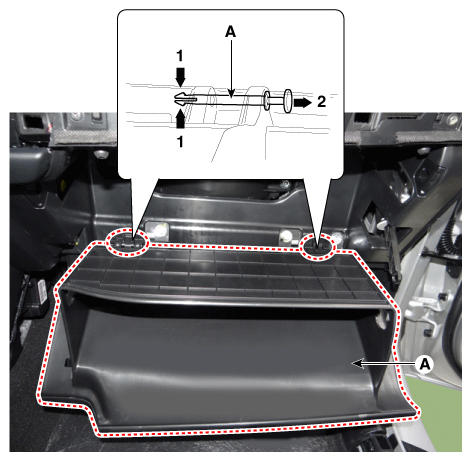

6. Disconnect the pins (A) and then remove the glove box (B).
   Fig 6: Removing Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.

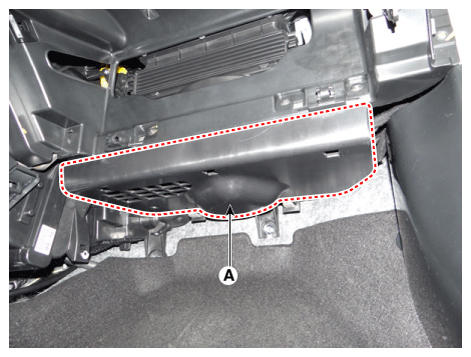

7. Remove the crash pad under cover [RH] (A).
   Fig 7: Removing Crash Pad Under Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

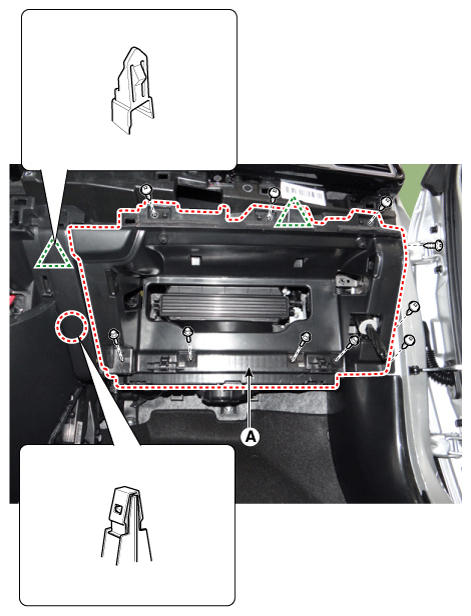

8. Remove the glove box housing (A) after loosening the mounting screws and bolts & nuts.
   Fig 8: Removing Glove Box Housing Mounting Screws And Bolts & Nuts

   Courtesy of KIA MOTORS AMERICA, INC.
9. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
• Replace any damaged clips.
