Repair Procedures: Replacement
CAUTION:
Put on gloves to protect your hands.
Information
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Be careful not to bend or scratch the trim and panels.

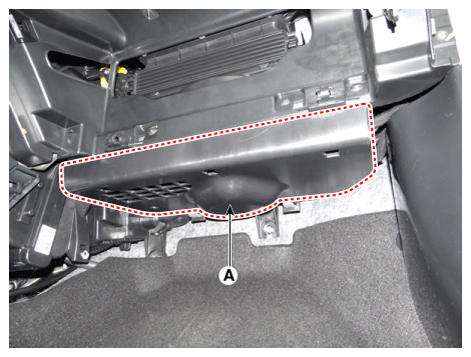

- Remove the crash pad under cover [RH] (A) after loosening the mounting screws.
- Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
