Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

1. Remove the crash pad side cover (A) by using a remover.

   [LH]

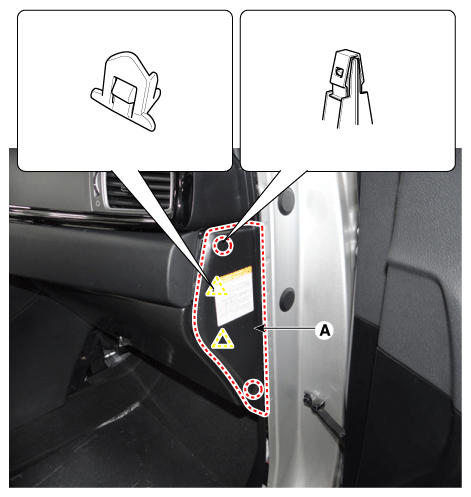

   Fig 1: Removing Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

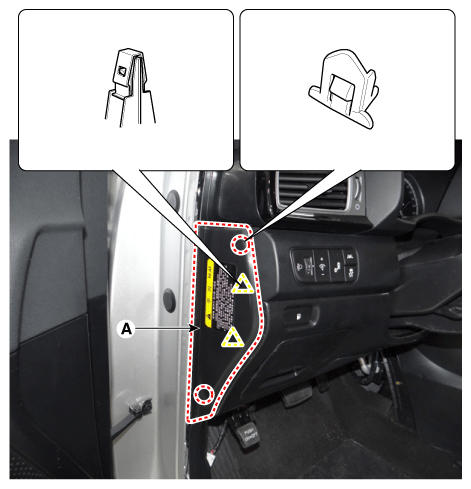

   Fig 2: Removing Crash Pad Side Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.
2. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
• Replace any damaged clips.
