Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

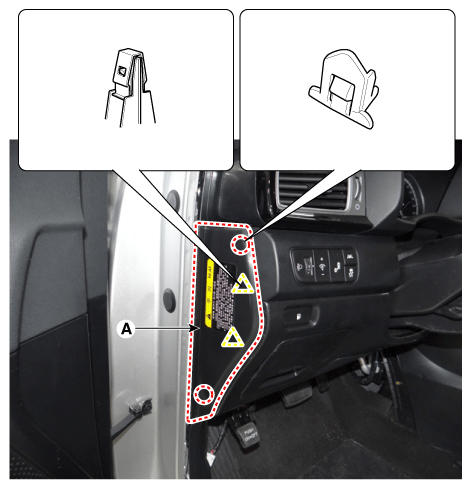

1. Remove the crash pad side cover [LH] (A) by using a remover.
   Fig 1: Removing Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

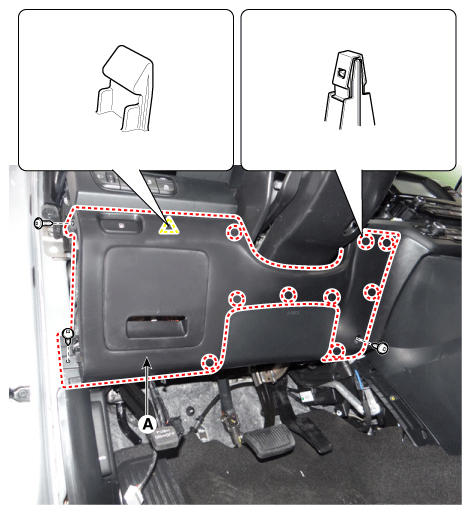

2. Remove the crash pad lower panel (A) after loosening the screw.
   Fig 2: Removing Crash Pad Lower Panel Screw

   Courtesy of KIA MOTORS AMERICA, INC.

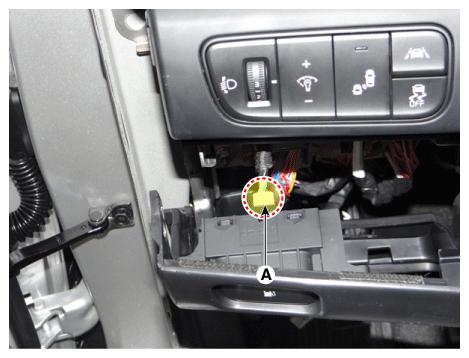

3. Disconnect the fuel filler door switch connector (A).
   Fig 3: Locating Fuel Filler Door Switch Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
• Replace any damaged clips.
