Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

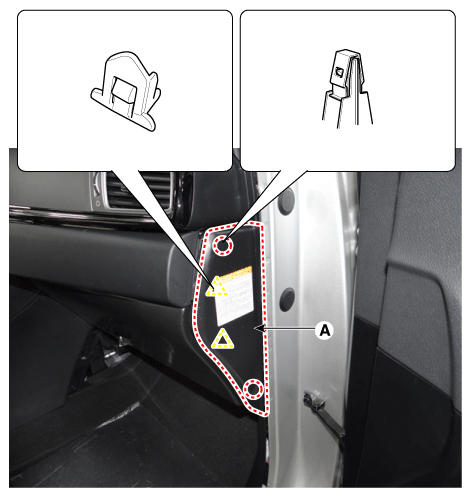

1. Remove the crash pad side cover [RH] (A) by using a remover.
   Fig 1: Removing Crash Pad Side Cover By Using Remover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

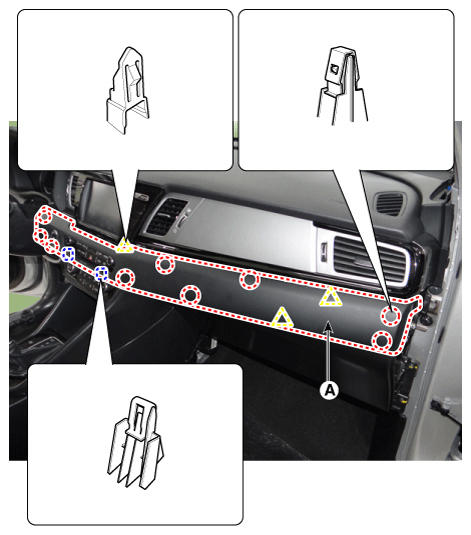

2. Remove the crash pad plate [RH] (A) by using a remover.
   Fig 2: Removing Crash Pad Plate (RH)

   Courtesy of KIA MOTORS AMERICA, INC.

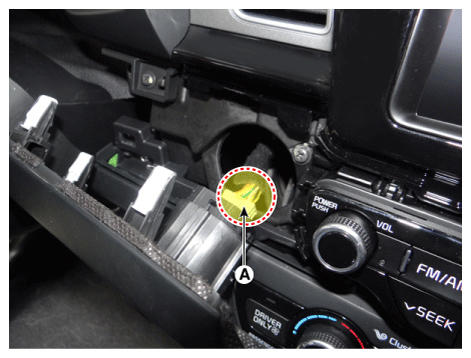

3. Disconnect the start/stop button connector (A).
   Fig 3: Locating Start/Stop Button Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
• Replace any damaged clips.
