Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

1. Remove the crash pad side cover [LH] (A) by using a remover.

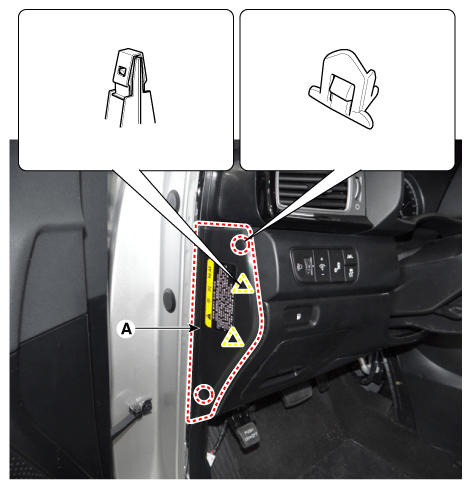

   Fig 1: Removing Crash Pad Side Cover By Using Remover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the crash pad lower panel (A) after loosening the screw.

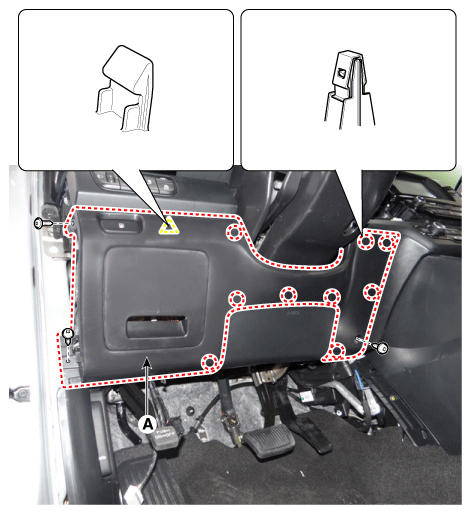

   Fig 2: Removing Crash Pad Lower Panel

   Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the fuel filler door switch connector (A).

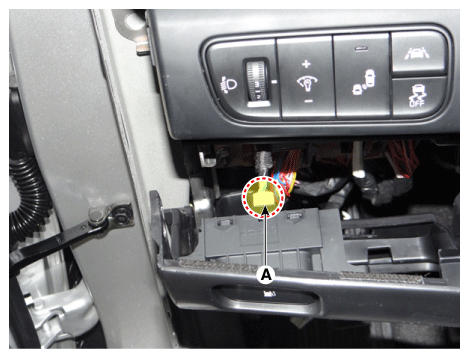

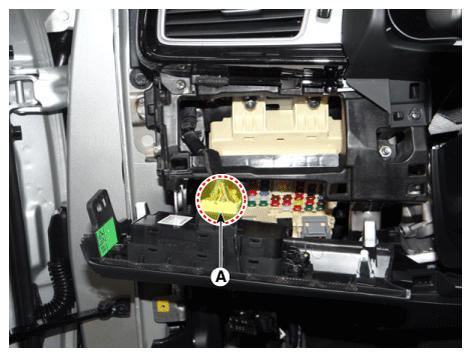

   Fig 3: Locating Fuel Filler Door Switch Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Remove the crash pad plate [LH] (A) after loosening the screw.

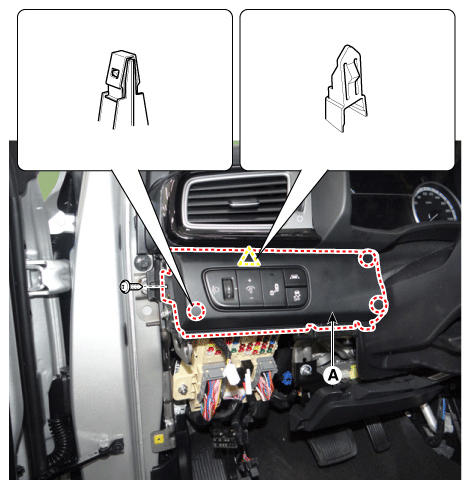

   Fig 4: Removing Crash Pad Plate Screw (LH)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Disconnect the crash pad plate [LH] connector (A).

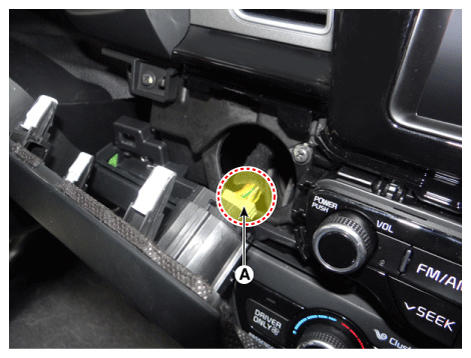

   Fig 5: Locating Crash Pad Plate Connector (LH)

   Courtesy of KIA MOTORS AMERICA, INC.
6. Remove the crash pad side cover [RH] (A) by using a remover.

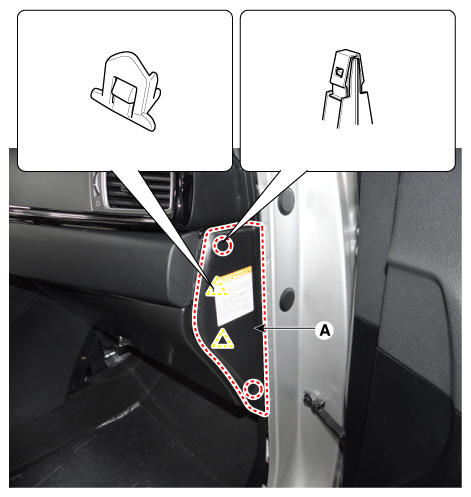

   Fig 6: Removing Crash Pad Side Cover By Using Remover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.
7. Remove the crash pad garnish [LH] (A) by using a remover.

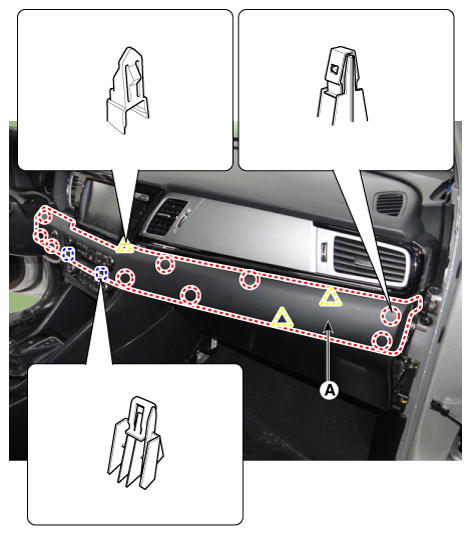

   Fig 7: Removing Crash Pad Garnish By Using Remover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.
8. Disconnect the start/stop button connector (A).
   Fig 8: Locating Start/Stop Button Connector

   Courtesy of KIA MOTORS AMERICA, INC.
9. Remove the cluster fascia panel (A) by using a remover.

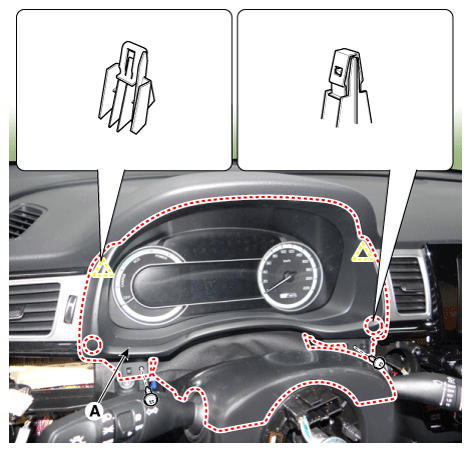

   Fig 9: Removing Cluster Fascia Panel By Using Remover

   Courtesy of KIA MOTORS AMERICA, INC.
10. Install in the reverse order of removal.

Information

• Make sure the connectors are connected properly.
• Replace any damaged clips.
