[Center Fascia Panel]

1. Remove the crash pad side cover [RH] (A) by using a remover.

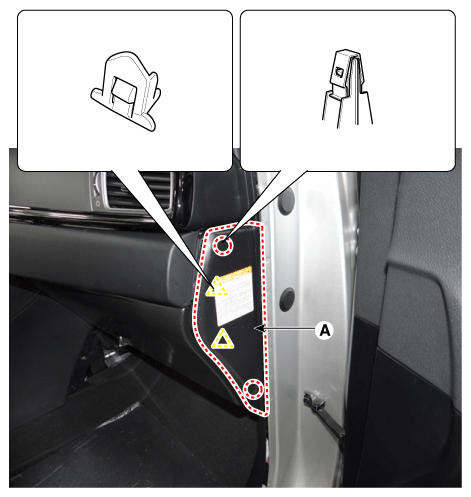

   Fig 1: Removing Crash Pad Side Cover - RH

   Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the crash pad plate [RH] (A) by using a remover.
   Fig 2: Removing Crash Pad Plate By Using Remover - RH

   Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the start/stop button connector (A).

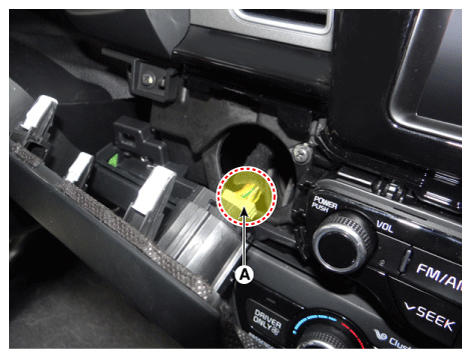

   Fig 3: Locating Start/Stop Button Connector

   Courtesy of KIA MOTORS AMERICA, INC.
4. Remove the center fascia panel (A) by using a remover.

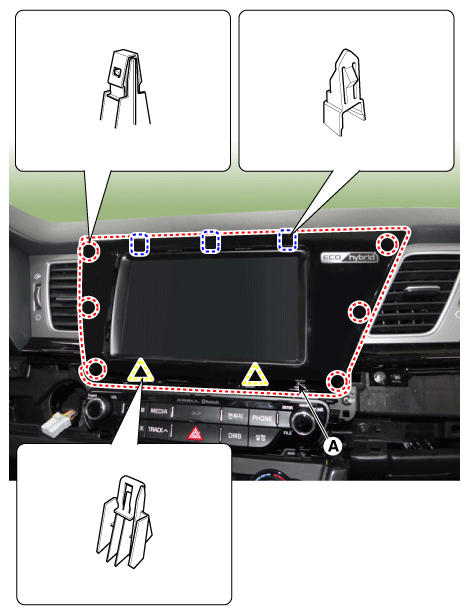

   Fig 4: Removing Center Fascia Panel

   Courtesy of KIA MOTORS AMERICA, INC.
5. Install in the reverse order of removal.

Information

• Make sure the connectors are connected properly.
• Replace any damaged clips.
