Circuit Diagram
>>
[General Standard]
[General Standard]

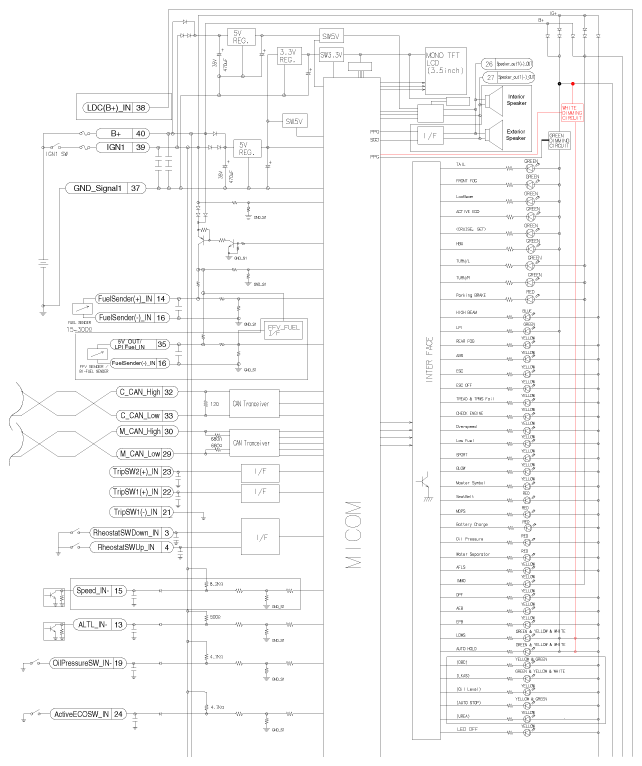

Fig 1: Instrument Cluster Circuit Diagram - General Standard (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

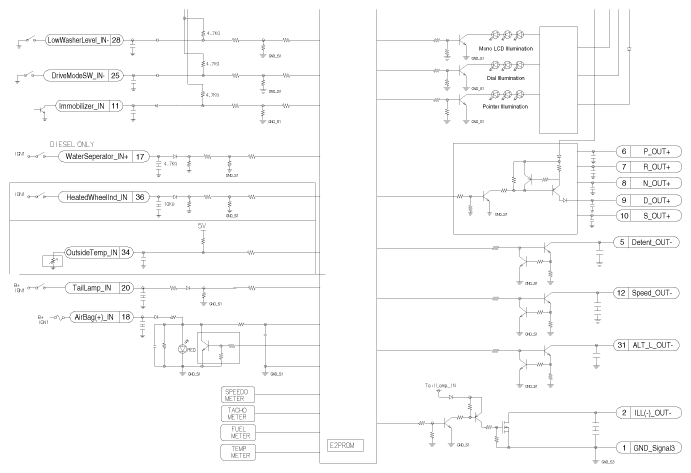

Fig 2: Instrument Cluster Circuit Diagram - General Standard (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
