Instrument Cluster Speaker

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

  3. Disconnect the instrument cluster speaker connector (A).

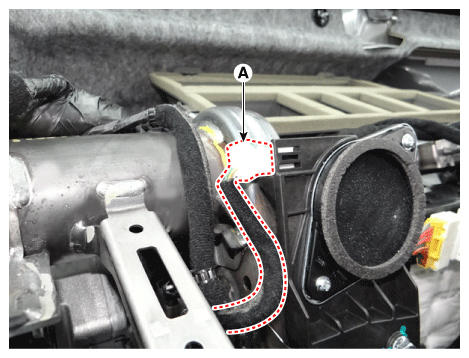

    Fig 1: Locating Instrument Cluster Speaker Connector
    G12298549Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the instrument cluster speaker (A) after loosening the mounting nuts.

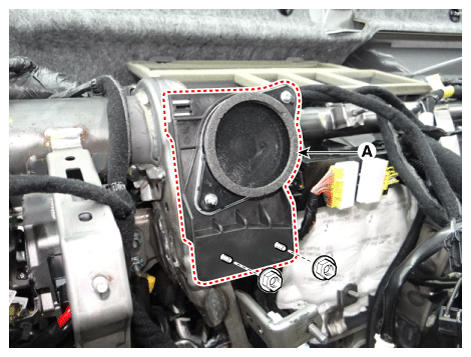

    Fig 2: Locating Instrument Cluster Speaker With Mounting Nuts
    G12298550Courtesy of KIA MOTORS AMERICA, INC.
