Description And Operation: Description: Function

1. High speed CAN communication (C-CAN)
   • Custom Function: Boarding interlocking sheets, Welcome Light
   • LDWS: Lane Departure Warning System
   • SPAS: Smart Parking Assist System
2. Low speed CAN communication (MM-CAN)
   • AV: Audio/Video Multimedia information Display
   • TBT: Turn By Turn Navigation Information Display
3. Sound output

   Instrument cluster and the external speakers are used to set off various warning sounds and sound effects. If external amps are applied, the directional alarm will be set off via the amps.

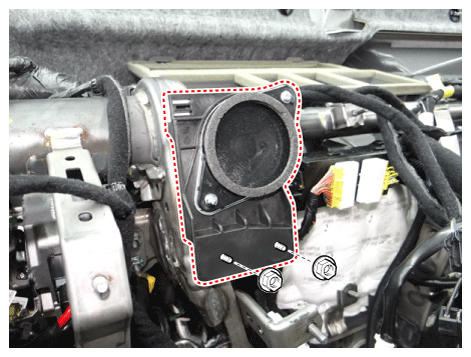

   Fig 1: Instrument Cluster Speaker With Bolts

   Courtesy of KIA MOTORS AMERICA, INC.

   Sound	Description and function (CAN data receiver)
   Welcome	Welcome (Key out and door open/closed state checked by BCM)
   Goodbye	Goodbye (Cluster)
   Door Open warning	Key reminder warning (BCM), Vehicle speed is 5 km/h or below & IGN switch is in "ACCTIGN" or engine starts & when vehicle speed is below 5 km/h or when the driver side door is opened
   Seat belt warning	Driver side seat belt warning (BCM)
   PAS System warning	PAS sensor fault warning (BCM)
   Gear R	PAS warning when shift gear R (BCM and SPAS)
   Parking Brake	Parking brake warning (BCM)
   Start button	SSB button warning (SMK)
   Rheostat light information	Rheostat warning when selecting max or min degree (Cluster)
   Smart Key departure	Smart key out warning (SMK)
   	Non smart key warning (SMK)
   Smart Cruise	Change from the Conventional cruise to the smart cruise (SCC)
   Smart cruise driving information	Smart cruise function cancel (SCC)
   conventional cruise	Change from the smart cruise to the conventional cruise (SCC)
   Turn signal lamp (Tick)	Turn signal lamp warning (BCM)
   Turn signal lamp (Tock)	Turn signal lamp warning (BCM)
   Smart key battery low voltage	Warning when driver pushes the SSB button with low voltage battery smart key (SMK)
   EPB warning	Warning when changing from Auto Hold to EPB lock (EPB)
   Coolant temperature alarm	When the engine temperature is over 120°C (EMS)

4. User Setting Mode (USM)

   Setting can be changed by using switches (Menu, UP, Down and OK button). There are many items (for example, In/Out Seat Synchronization, In/Out Steering Wheel Synchronization, Auto Door Lock, Auto Door Lock Deactivate, Head Lamp Escort, Welcome Light, Welcome Sound, One Touch Turn Signal, Average Fuel Consumption Auto Reset, Brightness, and Content Setup) that can be set and customized. The signal flow during setting is as follows.

   1. After setting, UMS settings are transmitted to BCM.
   2. BCM transmits the settings via B_CAN to the relevant modules.
   3. The module completes setting and transmits the modified setting to BCM.
   4. BCM transmits the final settings via C_CAN to the cluster.

Information

The cluster communicates directly with C-CAN units.
