Communication Network Diagram

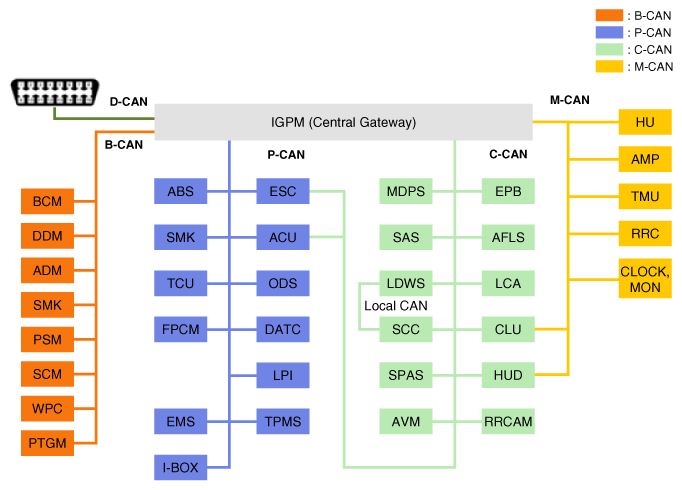

Fig 1: Instrument Cluster Communication Network Diagram
G12298545Courtesy of KIA MOTORS AMERICA, INC.
Abbreviation Explanation
ACU Airbag Control Unit
ADM Assist Door Module
AMP Amplifier
SCC Smart Cruise Control
SVM Surround View Monitor
IGPM Integrated Gateway Power Control Module
B_CAN Body Controller Area Network
BCM Body Control Module
BSD Blind Spot Detection
C_CAN Chassis Controller Area Network
CLUM Cluster Module
DATC Dual Automatic Temp Control
DDM Driver Door Module
Display Display Monitor
DSS Driver Seat Switch
ECS Electronic Control Suspension
EMS Engine Management System
EPB Electronic Parking Brake
EVP Evaporative Vacuum Pump
FPCM Fuel Pump Control Module
H/Unit Head Unit
HSWS Haptic Steering Warning System
HUD Head Up Display
I-BOX Telematics System
IDB Integrated Dynamic Brake
LDWS Lane Departure Warning System
M_CAN Multimedia Controller Area Network
MDPS Motor Driven Power Steering
MFS Multi-Function Switch
ODS Occupant Detection System
P_CAN Powertrain Controller Area Network
PGS Parking Guide System
PSB Pre-Safe Seat Belt
PSM Power Seat Module
PTLM Power Trunk Lid Module
RRC Rear Remote Control
SAS Steering Angle Sensor
SCM Steering Column Module
SJB Smart Junction Box
SLB Seat Lumbar Bolster
SMK Smart Key Unit
SPAS Smart Parking Assist System
SWRC Steering Wheel Remote Controller
TCU Transmission Control Unit
TPMS Tire Pressure Monitoring System
VDC Vehicle Dynamic Control
WPC Wireless Power Charger
