HUD Calibration

Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON".
Enter "Vehicle S/W Management" with KDS/GDS.
Enter "HUD Calibration" with KDS/GDS.
Go to "VERIFICATION OF REPAIR " procedure after image calibration.

Fig 1: Scantool Display - Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

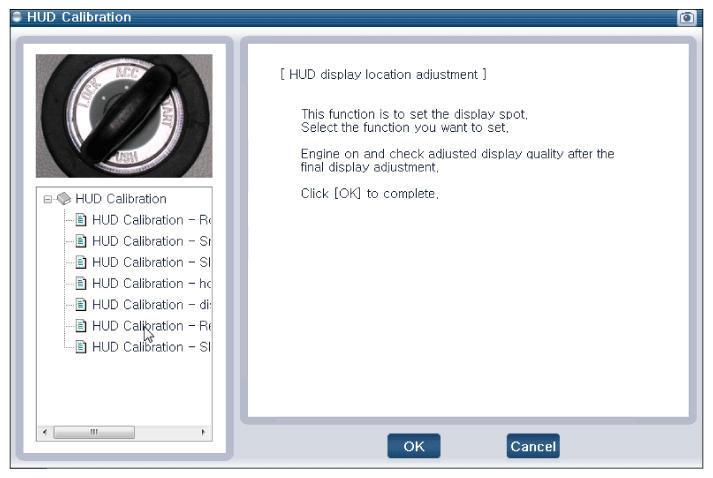

Fig 2: Scantool Display - HUD Display Location Adjustment
Courtesy of KIA MOTORS AMERICA, INC.

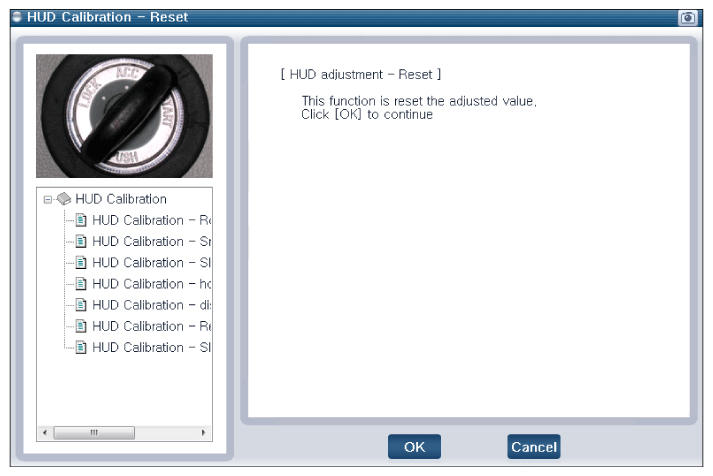

Fig 3: Scantool Display - HUD Adjustment (Reset)
Courtesy of KIA MOTORS AMERICA, INC.

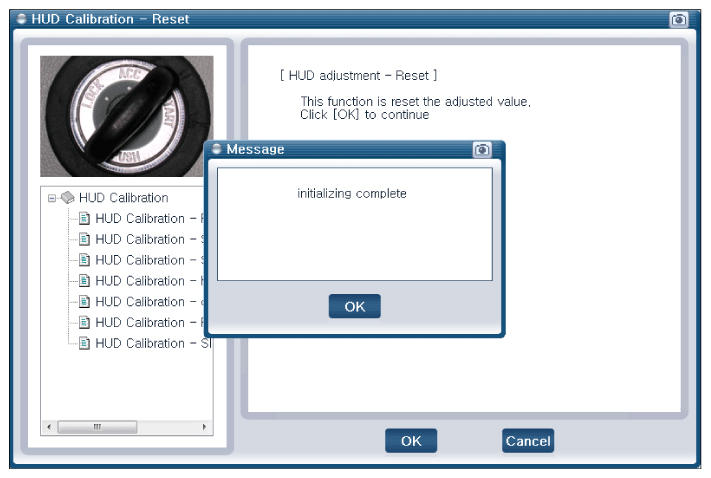

Fig 4: Scantool Display - Completed
Courtesy of KIA MOTORS AMERICA, INC.

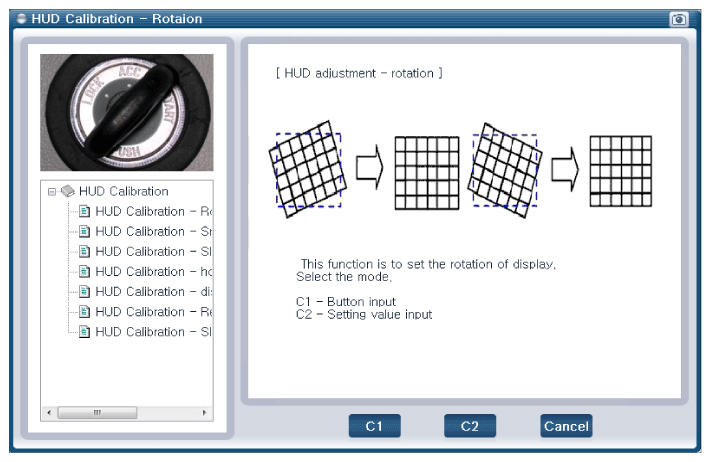

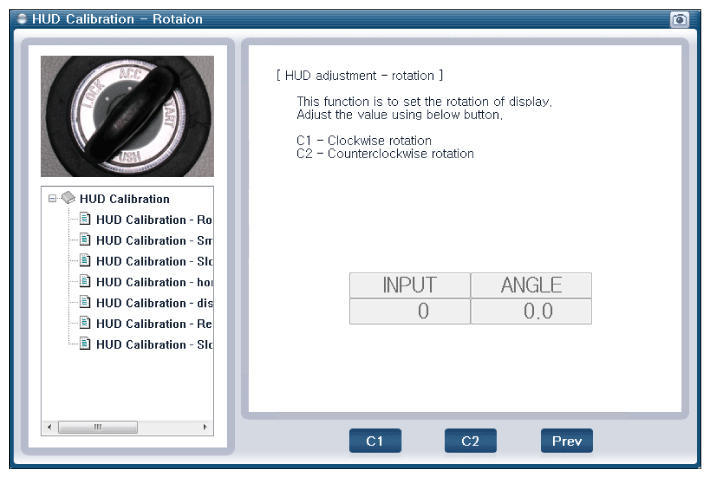

Fig 5: Scantool Display - HUD Adjustment (Rotation)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scantool Display - HUD Adjustment (Input & Angle)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Scantool Display - HUD Adjustment (Input, Adjusted & Angle)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Scantool Display - HUD Adjustment (Smile)
Courtesy of KIA MOTORS AMERICA, INC.

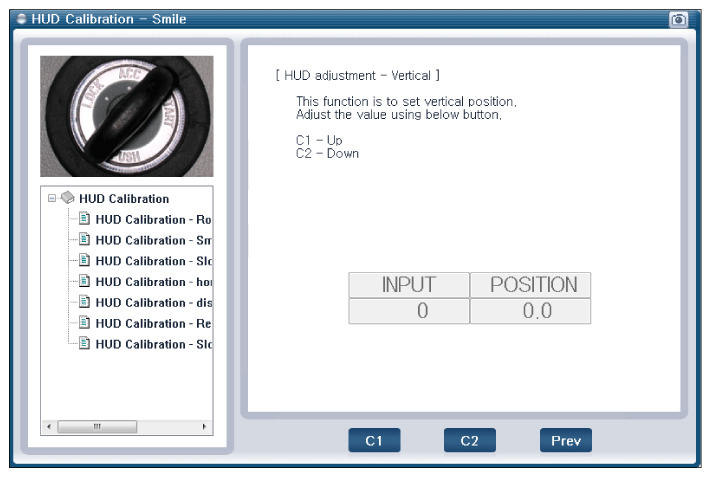

Fig 9: Scantool Display - HUD Adjustment (Vertical)
Courtesy of KIA MOTORS AMERICA, INC.

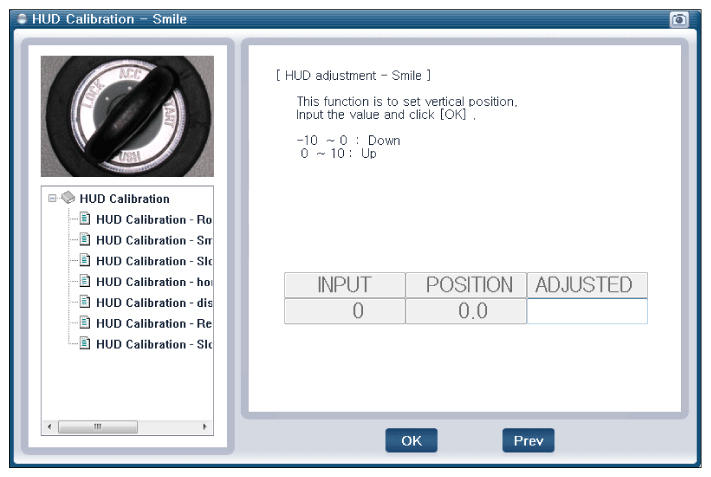

Fig 10: Scantool Display - HUD Adjustment (Smile)
Courtesy of KIA MOTORS AMERICA, INC.

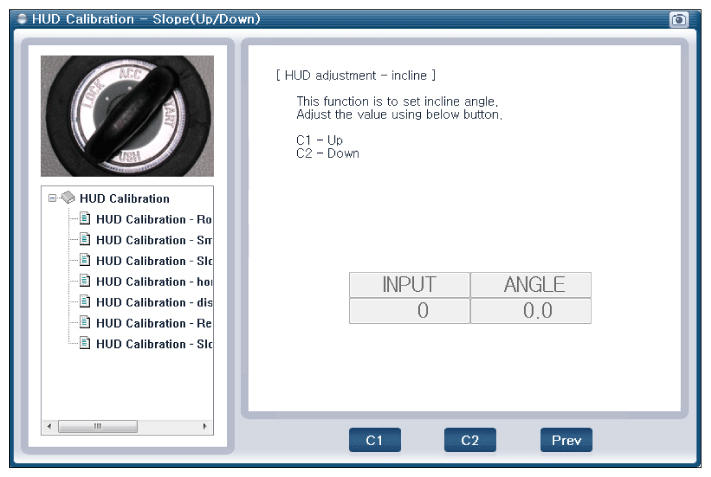

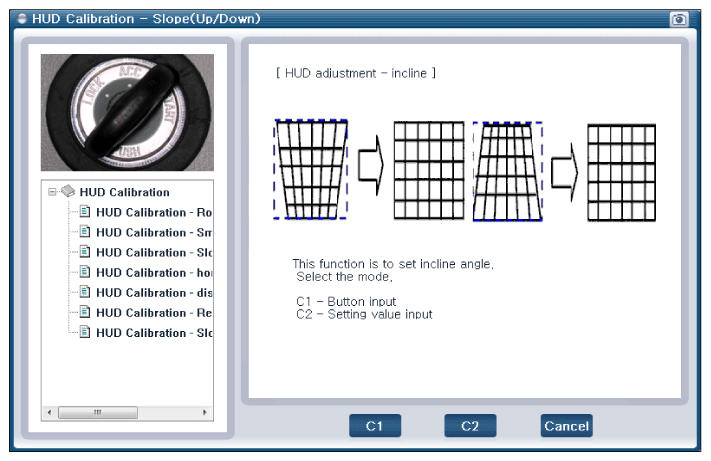

Fig 11: Scantool Display - HUD Adjustment (Incline)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Scantool Display - HUD Adjustment (Input & Angle)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Scantool Display - HUD Adjustment (Input, Adjusted & Angle)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 14: Scantool Display - HUD Adjustment (Horizontal Test)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 15: Scantool Display - HUD Adjustment (Input & Angle)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 16: Scantool Display - HUD Adjustment (Input, Adjusted & Angle)
Courtesy of KIA MOTORS AMERICA, INC.

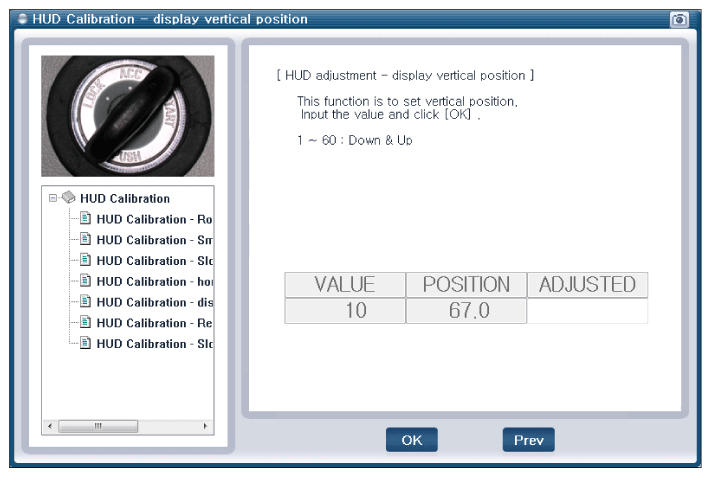

Fig 17: Scantool Display - HUD Adjustment (Display Vertical Position)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 18: Scantool Display - HUD Adjustment (Value & Position)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 19: Scantool Display - HUD Adjustment (Value, Adjusted & Position)
Courtesy of KIA MOTORS AMERICA, INC.

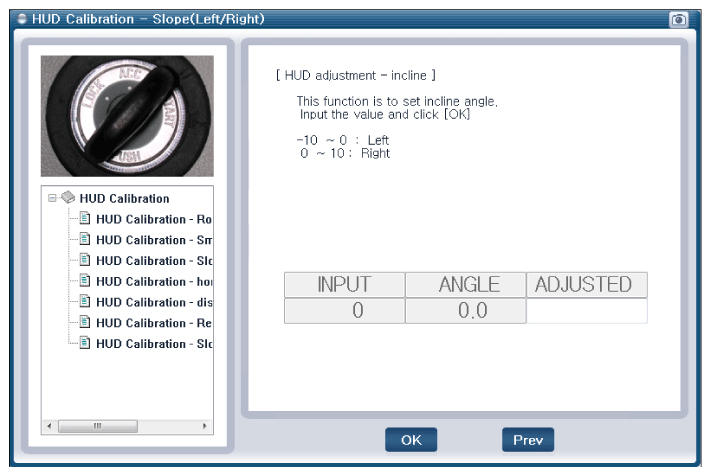

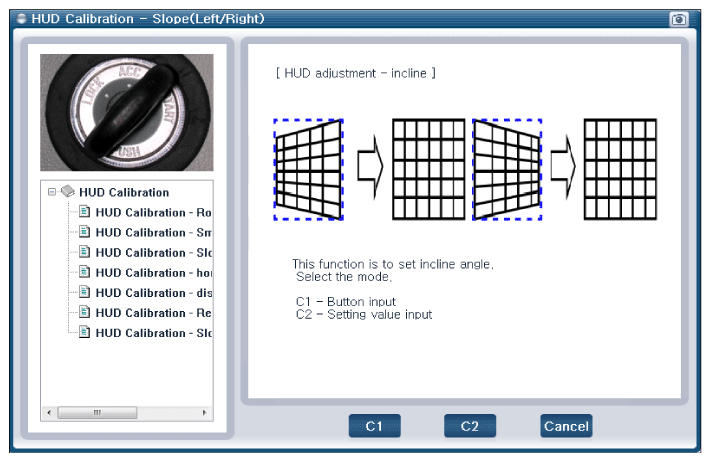

Fig 20: Scantool Display - HUD Adjustment (Incline)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 21: Scantool Display - HUD Adjustment (Input & Angle)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 22: Scantool Display - HUD Calibration Procedure
Courtesy of KIA MOTORS AMERICA, INC.
