Circuit Diagram

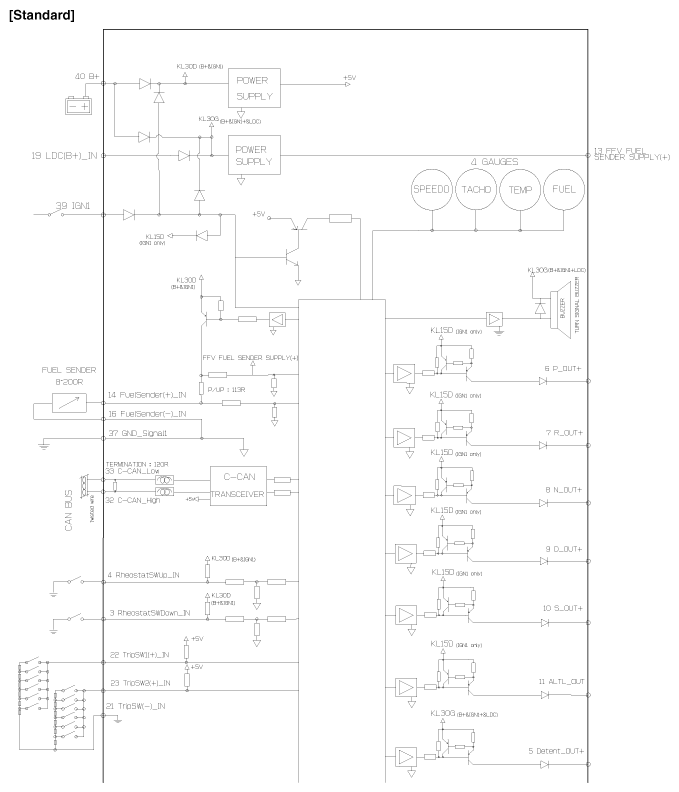

G11952179Courtesy of

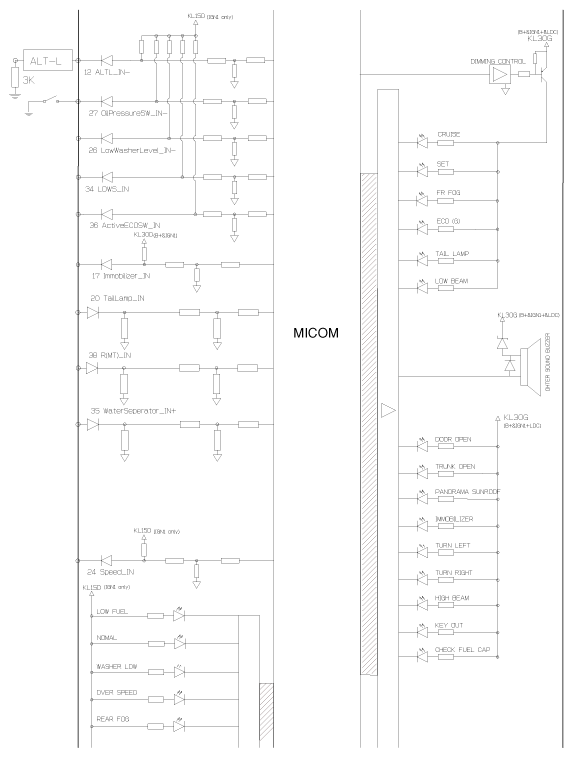

G11952180Courtesy of

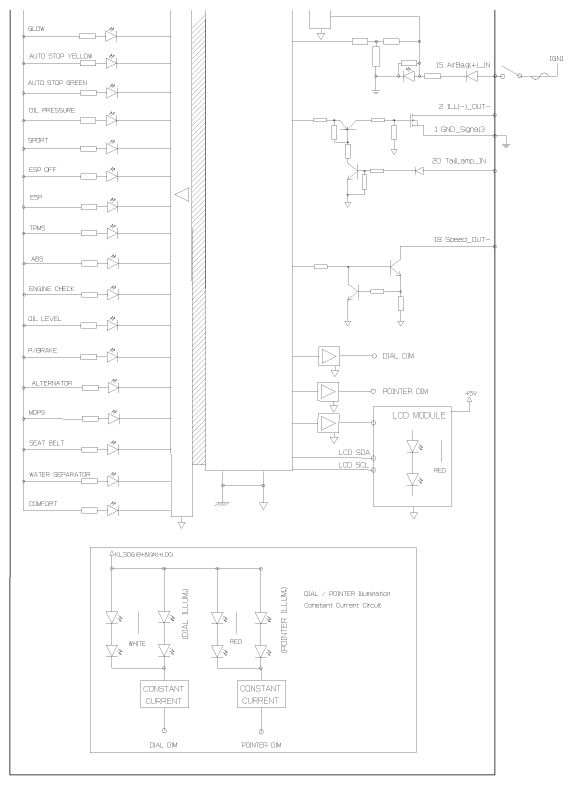

G11952181Courtesy of

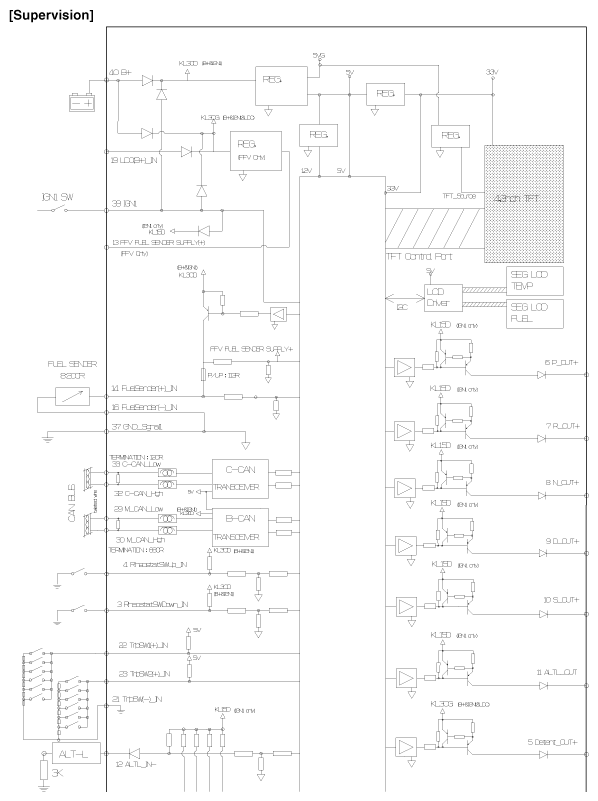

G11952182Courtesy of

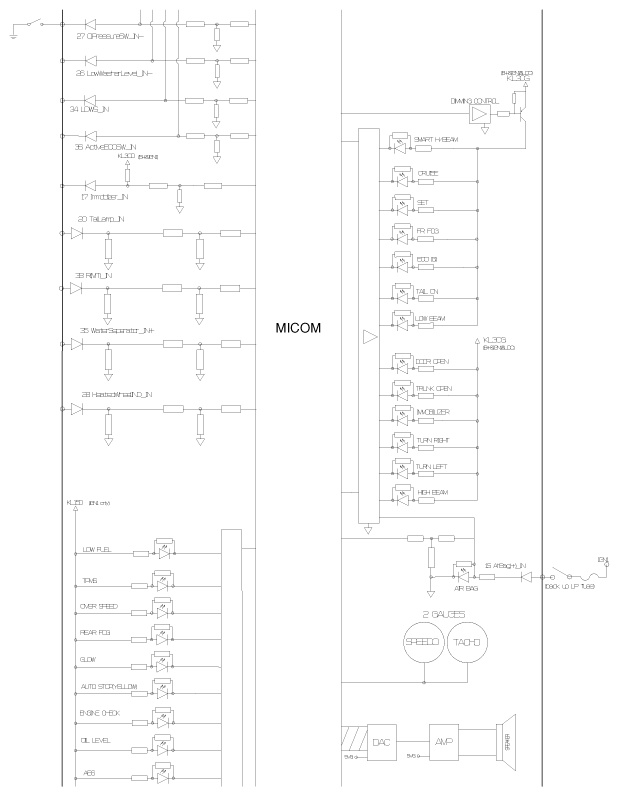

G11952183Courtesy of

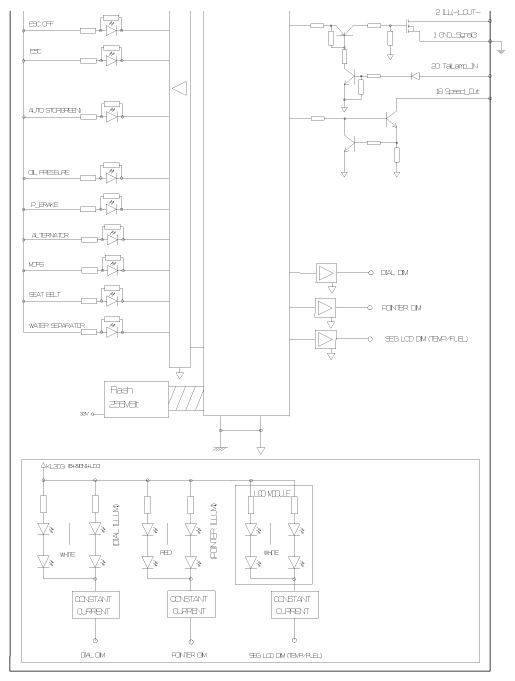

G11952184Courtesy of
