Components And Components Location: Components

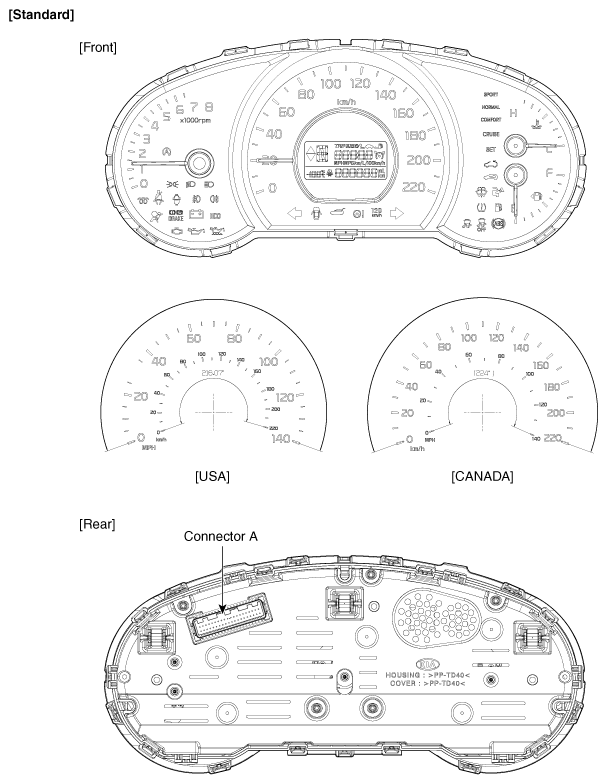

Fig 1: Instrument Cluster Connectors (Standard) (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Instrument Cluster Connectors (Standard) (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Connector Pin Information

No.	Description	No.	Description
1	Ground signal 3	21	Trip switch (-) input
2	Illumination output (-)	22	Trip switch 1 (+) input (Trip button)
3	Rheostat switch down input	23	Trip switch 2 (+) input (Cruise button)
4	Rheostat switch up input	24	Speed input (-)
5	Detent output (+)	25	-
6	P output (+) (A/T)	26	Low washer level input (-)
7	R output (+) (A/T)	27	Oil pressure switch input (-)
8	N output (+) (A/T)	28	-
9	D output (+) (A/T)	29	-
10	S output (+) (A/T)	30	-
11	ALT L output	31	-
12	ALT L input (-) (Battery charge)	32	C CAN high
13	-	33	C CAN low
14	Fuel sender (+) input	34	-
15	Airbag (+) input	35	-
16	Fuel sender (-) input	36	Active ECO switch input
17	Immobilizer input	37	Ground signal 1
18	Speed output (4P output)	38	R input (M/T)
19	LDC (Battery (+)) input	39	Ignition 1
20	Tail lamp input (Illumination (+))	40	Battery (+)

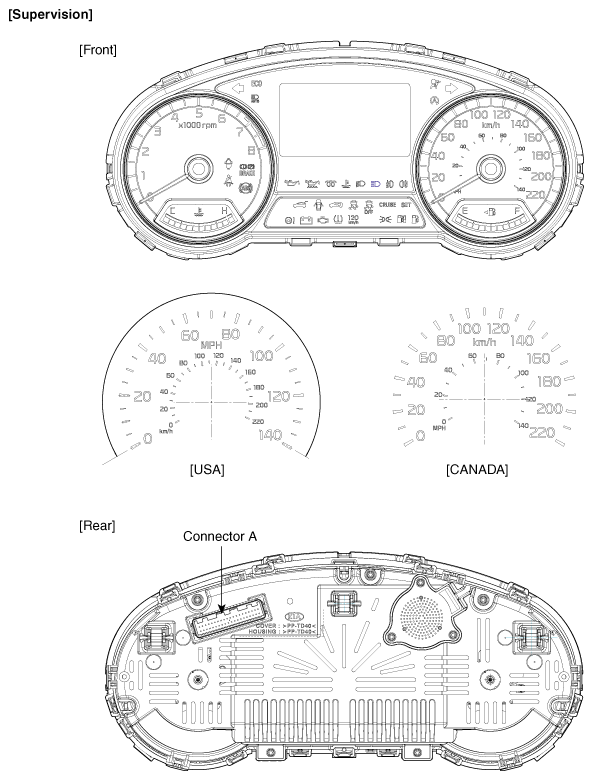

Fig 3: Instrument Cluster Connectors (Supervision) (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Instrument Cluster Connectors (Supervision) (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Connector Pin Information

No.	Description	No.	Description
1	Ground signal 3	21	Trip switch (-) input
2	Illumination output (-)	22	Trip switch 1 (+) input (Trip button)
3	Rheostat switch down input	23	Trip switch 2 (+) input (Cruise button)
4	Rheostat switch up input	24	Speed input (-)
5	Detent output (+)	25	-
6	P output (+) (A/T)	26	Low washer level input (-)
7	R output (+) (A/T)	27	Oil pressure switch input (-)
8	N output (+) (A/T)	28	Heated wheel indicator input
9	D output (+) (A/T)	29	M CAN low
10	S output (+) (A/T)	30	M CAN high
11	ALT L output	31	-
12	ALT L input (-) (Battery charge)	32	C CAN high
13	-	33	C CAN low
14	Fuel sender (+) input	34	-
15	Airbag (+) input	35	-
16	Fuel sender (-) input	36	Active ECO switch input
17	Immobilizer input	37	Ground signal 1
18	Speed output (4P output)	38	R input (M/T)
19	LDC (Battery (+)) input	39	Ignition 1
20	Tail lamp input (Illumination (+))	40	Battery (+)
