Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery / recycling / charging station.
When the engine is cool, drain the engine coolant from the radiator.
(Refer to "COOLANT .")
Remove the cowl top cover.
(Refer to "COWL TOP COVER .")
Remove the bolts and the expansion valve (A) from the evaporator core.
Tightening torque:

7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8.6 lb-ft)

Courtesy of
Remove the expansion valve flange (A) after loosening the screws.

Courtesy of
NOTE:
- Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.
- When installing, replace with a new O-ring (B).
Disconnect the inlet (A) and outlet (B) heater hoses from the heater unit.

Courtesy of
CAUTION:
- When disconnecting the hoses, engine coolant will pour out of the hose. So drain the coolant into a clean drip pan.
Remove the inlet and outlet heater hoses flange (A) after loosening the nuts (B).

Courtesy of

Courtesy of
Loosen the cowl cross member mounting bolts (A).

Courtesy of
Remove both sides of front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY .")
Remove the main crash pad assembly.
(Refer to "MAIN CRASH PAD ASSEMBLY .")
Disconnect the steering column connectors.
(Refer to "STEERING COLUMN AND SHAFT .")
Down the steering column after loosening the mounting bolts.
(Refer to "STEERING COLUMN AND SHAFT .")
Remove the rear airduct assembly (A).

Courtesy of
Remove the shift lever assembly.
(Refer to "SHIFT LEVER .")
Disconnect the airbag control module (SRSCM) connector (A).

Fig 1: Airbag Control Module (SRSCM) Connector
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting bolts and nuts, then remove the cowl cross bar center bracket (A).

Courtesy of
Disconnect the passenger compartment junction box connectors (A).

Fig 2: Passenger Compartment Junction Box Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the passenger compartment junction box mounting clips (A).

Courtesy of
Disconnect the multi box connectors (A).
[Driver's]

Fig 3: Multi Box Connectors (Driver Side)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Fig 4: Multi Box Connectors (Passenger Side)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A) and the mounting clips (B) in the front pillar.
[Driver's]

Fig 5: Front Pillar Connector (Driver Side)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Fig 6: Front Pillar Connector (Passenger Side)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drain hose (A).

Courtesy of

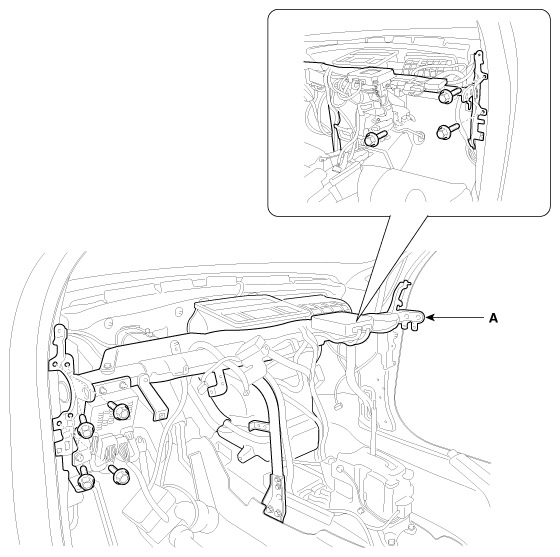

After loosening the nuts and bolts remove the cowl cross bar and heater & blower unit (A) together.

Courtesy of
Disconnect the heater & blower unit connectors.
1. Disconnect the Intake actuator connector (A) and then remove the wiring mounting clips.

  Fig 7: Intake Actuator Connector
  Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect the blower motor (A), temperature control actuator (B), mode control actuator (C) connectors and then remove the wiring mounting clips.

  Fig 8: Blower Motor, And Components Connectors
  Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the evaporator temperature sensor (A) field effect transistor air conditioning resistor (B) connectors and then remove the wiring mounting clips.

  Fig 9: Evaporator Temperature Sensor Connector
  Courtesy of KIA MOTORS AMERICA, INC.
4. Disconnect the cluster ionizer connector (A) and then remove the wiring mounting clips.

  Fig 10: Cluster Ionizer Connector
  Courtesy of KIA MOTORS AMERICA, INC.

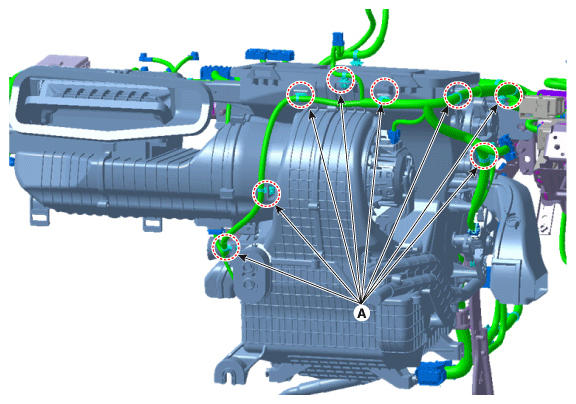

5. Remove the heater & blower unit wiring mounting clips (A).

  Courtesy of
Loosen the heater and blower unit mounting bolts (A) and then remove the mounting clips (B).

Courtesy of

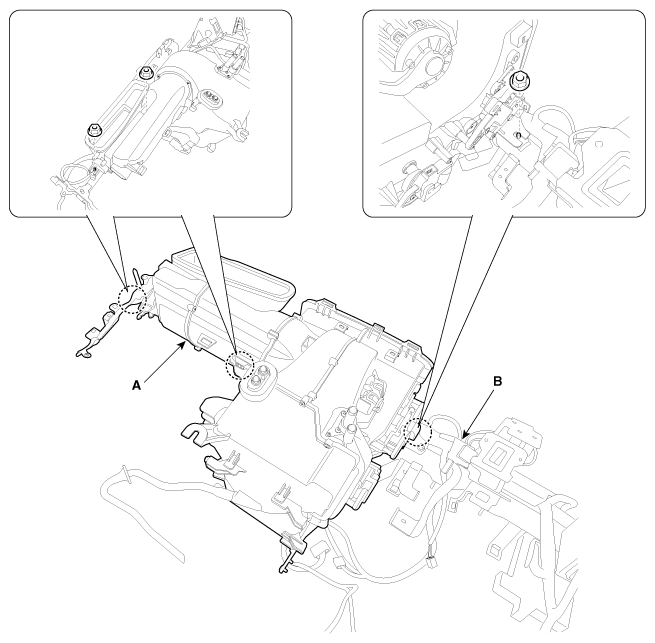

Remove the heater and blower unit (A) from the cowl cross bar (B) after loosening the mounting nuts.

Courtesy of
Install in the reverse order of removal.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
