Circuit Diagram
Circuit Diagram

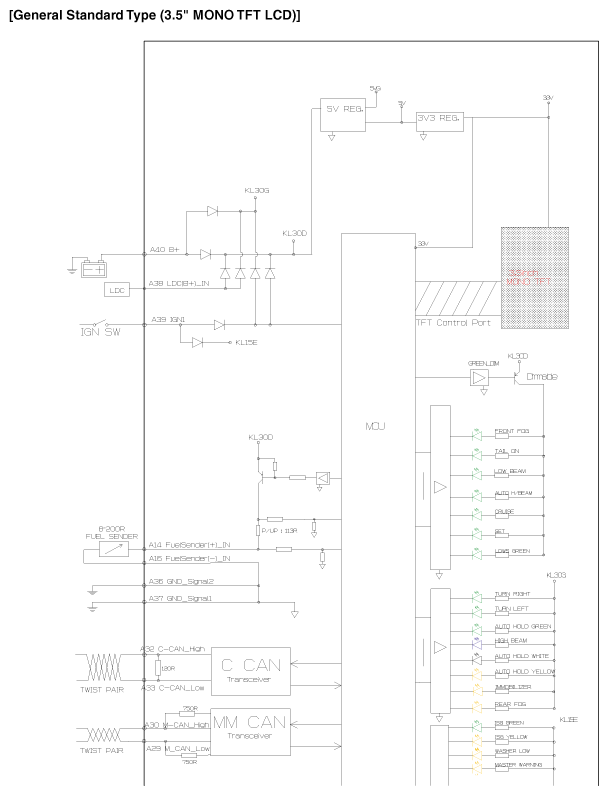

Fig 1: Instrument Cluster Circuit Diagram - General Standard Type (3.5 Mono TFT LCD; 1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

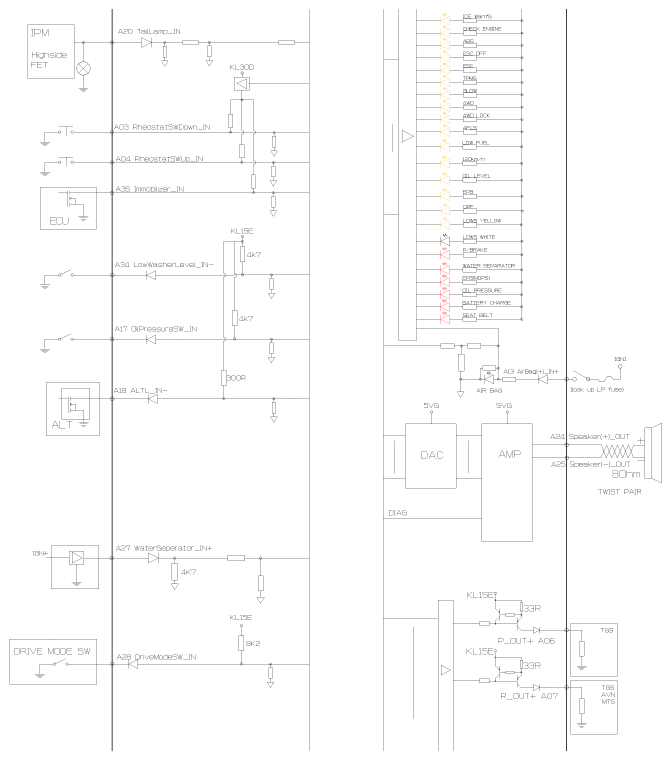

Fig 2: Instrument Cluster Circuit Diagram - General Standard Type (3.5 Mono TFT LCD; 2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

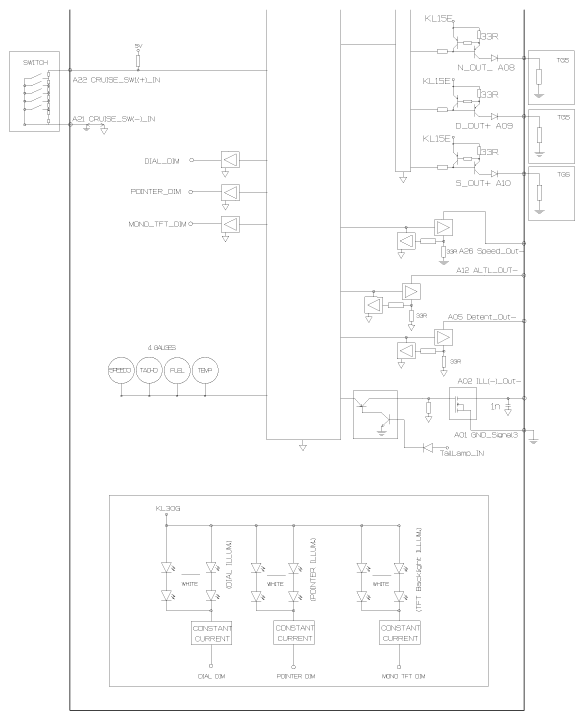

Fig 3: Instrument Cluster Circuit Diagram - General Standard Type (3.5 Mono TFT LCD; 3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

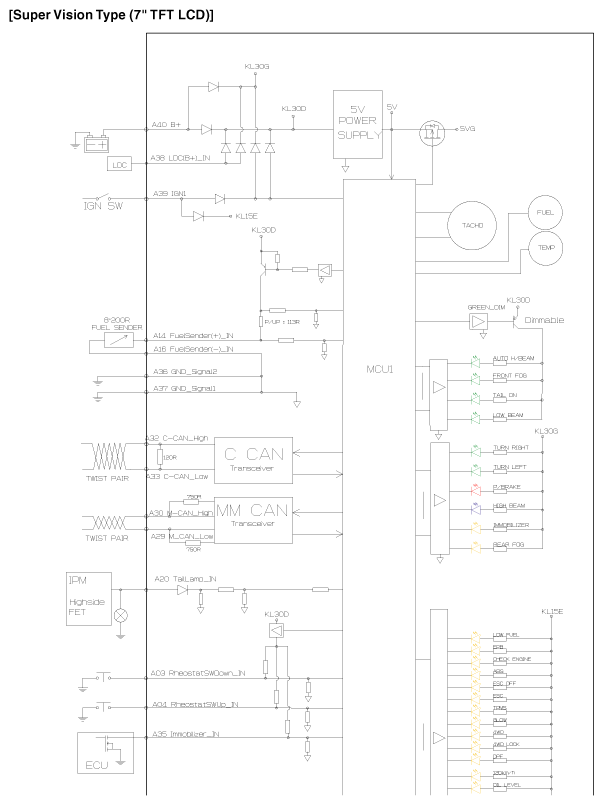

Fig 4: Instrument Cluster Components Location - Super Vision Type (7 TFT LCD; 1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

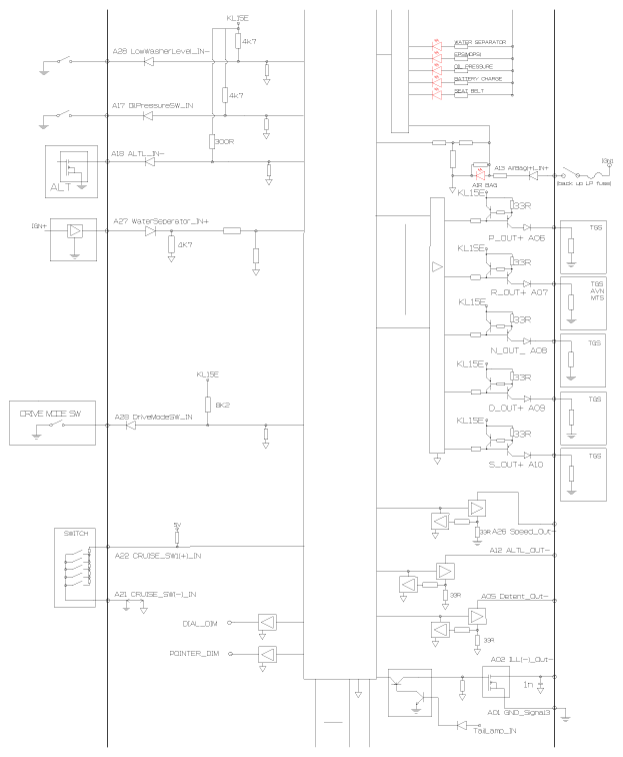

Fig 5: Instrument Cluster Components Location - Super Vision Type (7 TFT LCD; 2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

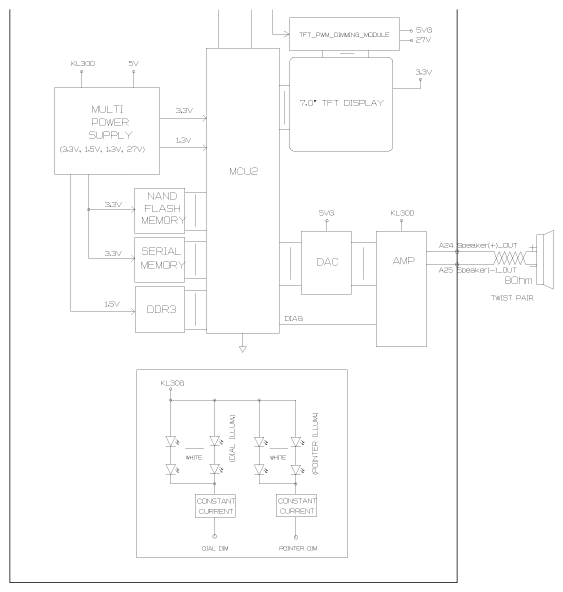

Fig 6: Instrument Cluster Components Location - Super Vision Type (7 TFT LCD; 2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
