Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the stopper (B) from the glove box (A).
   Fig 1: Disconnect Stopper From Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.
2. Disconnect the air damper (A) from the glove box (B).
   Fig 2: Disconnect Air Damper From Glove Box

   Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect the pins (A) and then remove the glove box (B).
Fig 3: Remove Glove Box
Courtesy of KIA MOTORS AMERICA, INC.
4. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

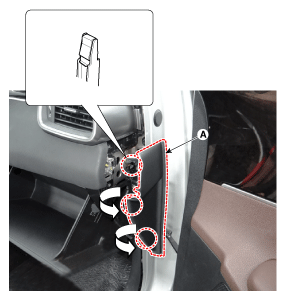

   Fig 4: Remove Crash Pad Side Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Loosen the mounting screws and remove the crash pad under cover [RH] (A).
   Fig 5: Remove Crash Pad Under Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.
6. After loosening the mounting screws and bolts & nuts, then remove the glove box housing (A).
   Fig 6: Remove Glove Box Housing

   Courtesy of KIA MOTORS AMERICA, INC.
7. Disconnect the glove box lamp connector (A) and glove box lamp switch connector (B).
   Fig 7: Locate Glove Box Lamp Connector

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 8: Locate Glove Box Lamp Switch Connector

   Courtesy of KIA MOTORS AMERICA, INC.
8. Install in the reverse order of removal.

   Information

   • Make sure the connector are connected in properly.
   • Replace any damaged clips.
