Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Using a screwdriver or remover, remove the crash pad side cover (A).

   [LH]

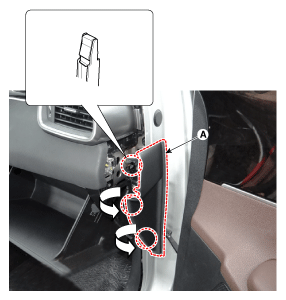

   Fig 1: Remove Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

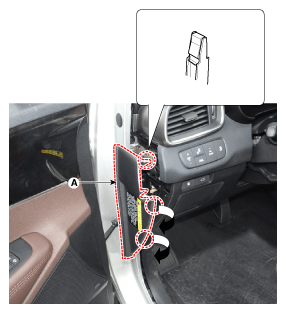

   Fig 2: Remove Crash Pad Side Cover (RH)

   Courtesy of KIA MOTORS AMERICA, INC.
2. Install in the reverse order of removal.

   Information

   Replace any damaged clips.
