Repair Procedures: Replacement

Information

• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Using a screwdriver or remover, remove the front door scuff trim (A).

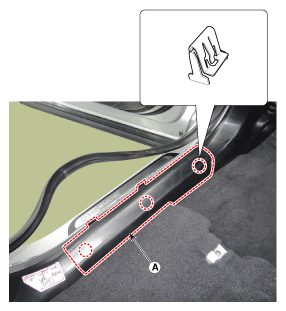

   Fig 1: Remove Front Door Scuff Trim

   Courtesy of KIA MOTORS AMERICA, INC.
2. Loosen the screw and remove the hood latch release handle (A).

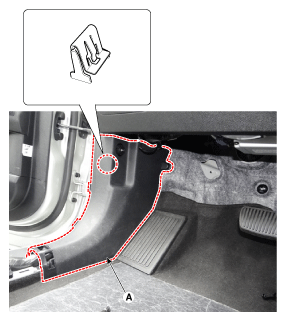

   Fig 2: Remove Hood Latch Release Handle

   Courtesy of KIA MOTORS AMERICA, INC.
3. Using a screwdriver or remover, remove the cowl side trim (A).

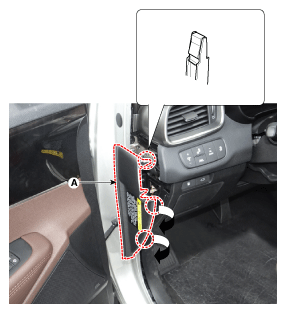

   Fig 3: Remove Cowl Side Trim

   Courtesy of KIA MOTORS AMERICA, INC.
4. Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

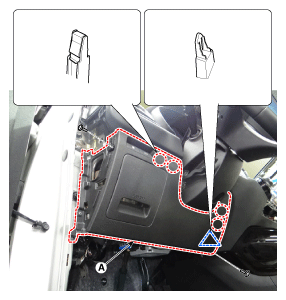

   Fig 4: Remove Crash Pad Side Cover (LH)

   Courtesy of KIA MOTORS AMERICA, INC.
5. Loosen the mounting screws and remove the crash pad lower panel (A).
   Fig 5: Remove Crash Pad Lower Panel

   Courtesy of KIA MOTORS AMERICA, INC.
6. Disconnect the crash pad lower switch connectors (A).
   Fig 6: Disconnect Crash Pad Lower Switch Connectors

   Courtesy of KIA MOTORS AMERICA, INC.
7. Install in the reverse order of removal.

   Information

   • Make sure the connector are connected in properly.
   • Replace any damaged clips.
